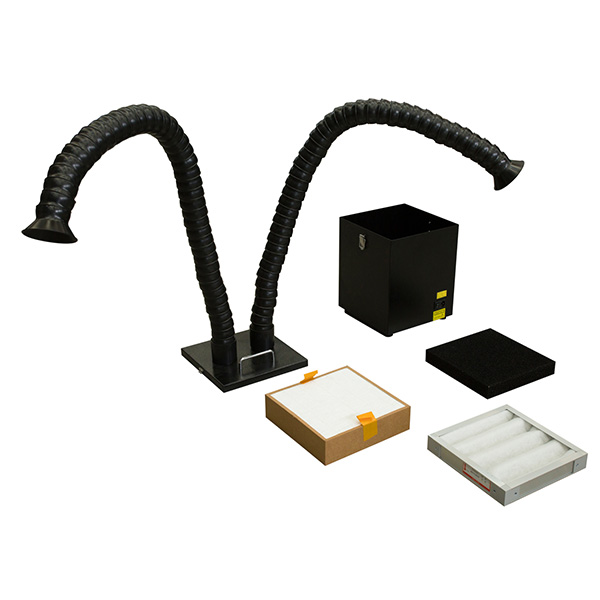

KSXH-20B Soldering Fume Extractor

Features:
● light weight, easy to operate
● Adjustable flexible POM suction arm
● High-power DC brush-less motor
● Multi-level-filtration,cotton filter, HEPA filter and activated carbon filter
● Long service life, low noise, large air flow

Introduction:

Small but powerful–CE & RoHS certificated KSXH series fume extractor creates a powerful 260 cubic meter airflow to exhaust and purify air, suitable
for small soldering station and home DIY. The compact size can be stuffed under
the table and won’t hinder your leg free. Its flexible POM suction arm can be
disassembled and shortened at any time.

Parameters:

Model

KSXH-20B

Fan Air Flow

480±10m3/h

Inlet Air Flow

260±10m3/h

Motor Power

200W

Power Supply

1x220V/50Hz

Maximum Pressure

450Pa

Filter Material

Cotton, Cellulose, Carbon

Filtration Area

3㎡

Filtration Efficiency

≥95%

Filtration  Precision

≥0.5μm

Filter Element

HEPA

Cleaning Method

Changing filter

Noise Level

≤65±5 dB

Suction Arm

1xφ75mmx1200mm

Dimension (WxDxH)

308×308×420mm

Weight

15±2kg

Options & Accessories:

1.2m to 3m suction arm

Frequency converter

Activated carbon filter

Applications:

Light welding activities

Steel or stainless steel wedling

TIG welding

Auto repair shops

Agricultural sector

Welding school

Technical college
