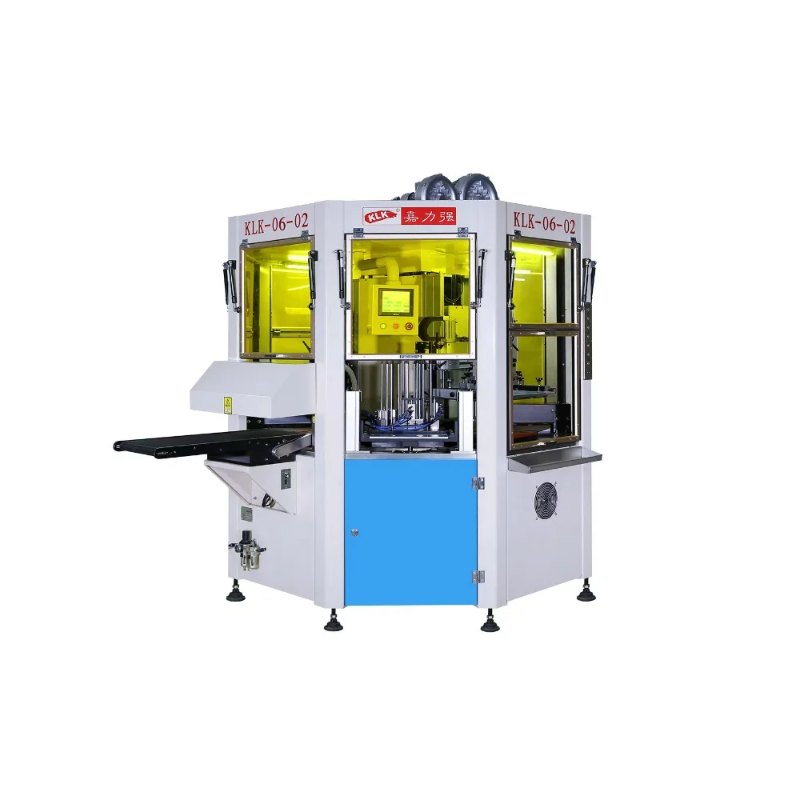

Z082 2 Colors 8 Stations Rotary Screen Printer for Glass Bottles and Cosmetic Containers

1. Product Introduction

The Z082 2 Colors 8 Stations Rotary Screen Printer is an automated screen printing machine designed for decorating glass bottles and cosmetic containers with round, oval, square, and rectangular shapes. Featuring a servo-driven printing system, automatic loading and unloading, and CCD-assisted servo pre-registration, it supports accurate product positioning and consistent printing performance in industrial production environments.

The machine integrates flame pretreatment to help improve ink adhesion on compatible substrates. After screen printing, users can select an LED UV or electrode UV curing configuration according to their ink system and production requirements. An industrial PLC control system, touchscreen operation, and network-connected servo motors support convenient machine operation and potential future maintenance and program upgrades.

With eight stations and a two-color printing configuration, the Z082 is suitable for manufacturers seeking automated container decoration, repeatable print positioning, and improved production efficiency. Optional vacuum or air-inflation fixtures can be selected to accommodate different workpiece holding requirements.

Manufactured by Shenzhen Kar Lee Keung Electronic Equipment Ltd., the Z082 provides an automated printing solution for glass packaging, cosmetic containers, and other compatible products.

2. Key Features and Advantages

Servo-Driven Automatic Printing System

• Uses an all-servo-driven automatic printing system to support accurate printing operations.

• Servo control helps coordinate machine movements and product positioning.

• Designed for repeatable printing tasks in continuous production environments.

• Suitable for industrial container decoration requiring consistent print placement.

Automatic Loading and Unloading

• Servo-driven automatic loading and unloading system.

• Reduces the need for manual handling during routine production.

• Supports a more continuous workflow for compatible workpieces.

• Helps manufacturers streamline repetitive container printing operations.

CCD and Servo Pre-Registration

• Combines CCD-assisted positioning with servo pre-registration.

• Helps align products before printing.

• Supports accurate positioning for products requiring controlled print placement.

• Actual registration performance depends on product geometry, surface characteristics, and setup conditions.

Flame Pretreatment

• Integrated flame pretreatment system.

• Helps improve ink adhesion on compatible materials.

• Supports surface preparation before printing.

• Pretreatment parameters should be adjusted according to the substrate and ink specifications.

Flexible UV Curing Options

• Optional LED UV or electrode UV curing after screen printing.

• Specified LED UV power: 230 W.

• Allows curing configuration to be selected according to the ink system and production process.

• Confirm ink compatibility and curing requirements before finalizing the configuration.

PLC Control and Touchscreen Operation

• Industrial PLC control system.

• Touchscreen operation interface.

• Ethernet-connected servo motor architecture.

• Network connection available to support potential maintenance and program upgrades, subject to the manufacturer's service arrangements.

Optional Workpiece Fixtures

• Vacuum fixture option.

• Air-inflation fixture option.

• Fixture selection can be matched to the shape, surface, and holding requirements of the workpiece.

3. Technical Specifications

Note: The listed printing speeds are reference values and may vary with product geometry, printing area, ink, curing method, fixture design, and production conditions. Confirm the final machine configuration and achievable output with the manufacturer. The supplied product information identifies the model as Z082; the specification table's original model entry “2082” should be verified before ordering.

4. Suitable Products and Applications

The Z082 is designed for screen printing on compatible containers and products with round, oval, square, or rectangular shapes.

Glass Bottles

• Glass packaging bottles

• Cosmetic glass bottles

• Compatible decorative glass containers

• Bottles requiring product identification or brand graphics

Cosmetic Containers

• Cosmetic packaging containers

• Round and oval cosmetic bottles

• Compatible square and rectangular containers

• Packaging components requiring decorative or identification printing

Container Decoration and Branding

• Brand logos

• Product names and identification graphics

• Decorative patterns

• Two-color printed designs

• Other compatible screen-printed graphics

Application suitability depends on workpiece dimensions, substrate properties, surface treatment requirements, fixture compatibility, and ink curing conditions. Product samples should be evaluated before mass production.

5. Production Benefits

Improved Positioning Consistency

The servo-driven printing system and CCD-assisted pre-registration help position products for repeatable printing operations, supporting applications where graphic alignment is important.

Reduced Manual Handling

Automatic loading and unloading can reduce routine manual handling and help streamline the production workflow.

Adaptability to Different Container Shapes

The machine supports compatible round, oval, square, and rectangular products within the specified dimensional range. Suitable fixtures and setup parameters must be selected for each workpiece.

Integrated Pretreatment and Curing Options

Flame pretreatment and optional UV curing provide process choices for different substrate and ink combinations. Correct process settings are essential for achieving the required adhesion and print quality.

Convenient Machine Operation

PLC control and touchscreen operation provide a centralized interface for managing machine functions. Network connectivity may support future maintenance and program upgrades, subject to the manufacturer's arrangements.

6. Configuration and Selection Guidance

Before purchasing the Z082 2 Colors 8 Stations Rotary Screen Printer, buyers should confirm the following details:

• Workpiece dimensions: Provide the maximum and minimum diameter, height, and overall shape.

• Substrate material: Confirm whether the workpieces are glass or another compatible material.

• Printing colors: Confirm the two-color configuration and required artwork.

• Registration requirements: Specify whether CCD-assisted pre-registration is necessary for the printing pattern.

• Fixture type: Select a vacuum or air-inflation fixture according to the workpiece design.

• Ink and curing: Confirm ink compatibility with flame pretreatment and the selected UV curing option.

• Production target: Provide the required output rate and expected operating schedule.

• Factory utilities: Confirm 380 V, 50/60 Hz power supply and 0.5–0.7 MPa air pressure availability.

• Installation and support: Clarify installation, commissioning, operator training, spare parts, and maintenance arrangements with the supplier.

Providing product samples, drawings, and print artwork can help the manufacturer assess compatibility and recommend a suitable configuration.

7. Manufacturer Information

Shenzhen Kar Lee Keung Electronic Equipment Ltd. is a manufacturing enterprise with capabilities in equipment development, design, and production. The company supplies industrial printing machinery and related equipment for specialized printing, surface treatment, curing, spraying, and assembly-line applications.

Main Product Categories

• Pad printing machines

• Screen printing machines

• Hot stamping machines

• UV curing ovens

• Flame treatment machines

• Screen stretching machines

• Plate exposure machines

• Tunnel ovens and cabinet ovens

• LED-specific baking ovens

• Spray booths and spray coating production lines

• Belt-type, roller-type, and chain-type production lines

• Automatic and semi-automatic assembly systems

Quality and Manufacturing Approach

The company emphasizes quality management, operational efficiency, workplace safety, customer service, and continuous improvement. Its stated management practices include the 5S principles and adherence to the ISO 9001:2000 quality management system.

In addition to standard industrial printing equipment, the company offers customized equipment and production-line solutions according to customer requirements. Buyers should confirm current certifications, customization scope, delivery schedules, and after-sales service availability directly with the manufacturer.

8. Frequently Asked Questions

Q1: What products can the Z082 print?

A: It is designed for compatible glass bottles and cosmetic containers with round, oval, square, or rectangular shapes.

Q2: What are the supported workpiece dimensions?

A: The specified article diameter is Φ25–90 mm, and the article height is 35–250 mm. The maximum printing stroke is 300 mm.

Q3: Does the machine support automatic feeding?

A: Yes. It features a servo-driven automatic loading and unloading system.

Q4: How does the registration system work?

A: The machine uses CCD and servo pre-registration to help position workpieces before printing. Final positioning performance depends on the product and setup.

Q5: What curing options are available?

A: LED UV and electrode UV curing options are listed. The specified LED UV power is 230 W. The appropriate option should be selected according to the ink and process requirements.

Q6: What fixtures can be selected?

A: Vacuum and air-inflation fixtures are available as options. Confirm the suitable fixture based on the workpiece geometry and holding requirements.

Q7: What is the machine's printing speed?

A: The reference maximum speed is 40–60 pieces per minute for round and oval products, and 30–40 pieces per minute for square products. Actual production speed depends on the product, artwork, ink, curing process, and operating conditions.

Q8: What are the power and air supply requirements?

A: The listed power supply is 380 V, 50/60 Hz, with total machine power of 8 kW. The specified air pressure is 0.5–0.7 MPa. Confirm the final utility requirements before installation.

9. Inquiry and Purchasing Information

For a quotation, provide the product material, shape, diameter, height, printing artwork, number of colors, required production speed, fixture preference, and UV curing requirements. Photos, drawings, and physical samples can help verify machine suitability.

Contact Shenzhen Kar Lee Keung Electronic Equipment Ltd. to discuss technical specifications, configuration options, sample testing, production requirements, and purchasing arrangements for the Z082 2 Colors 8 Stations Rotary Screen Printer.
