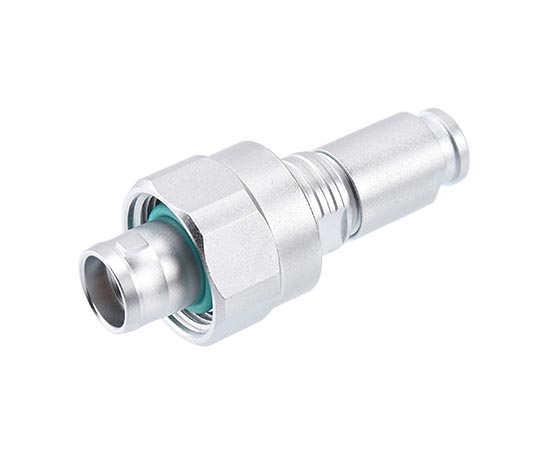

W Series FVG Straight Plug
– Security of the push-pull self-locking system – Multipole type 2 to 30 contacts – High packing density for space savings – Keying system (G key standard) for connector alignment – Rugged housin
| Coupling： | Push pull self-locking |
| Operating temperature： | -45℃ ~ +125℃ |
| Humidity： | Up to 95% at 60°C/140°F |
| Anti-vibration performance： | 15g [10-2000 Hz] |
| Impact resistance： | 100g, 6ms |
| Salt spray corrosion test： | >96h |
| Protection level： | IP68 |
| Insulation impedance： | ≥100 mΩ |
| Shielding performance： | >95dB (10MHz); >80dB (1GHz) |
| Mechanical life： | >5000 Cycles |
– Security of the push-pull self-locking system
– Multipole type 2 to 30 contacts
– High packing density for space savings
– Keying system (G key standard) for connector alignment
– Rugged housing for extreme working conditions
– Solder, crimp or print（Straight or elbow）contacts
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
