V5°
Monitoreo y actualización remota Mayor tasa de carga/descarga Temperatura de funcionamiento más amplia Mayor densidad energétic Mayor escalabilidad
| Modelo de batería | V5°/V5°α |
|---|---|
| Eléctrico | |
| Química | Liga de Fútbol Profesional |
| Voltaje nominal | 51,2 V |
| Rango de voltaje | 100 Ah |
| Energía nominal | 47,5 V ~ 57,6 V |
| Corriente de carga/descarga recomendada | 75A |
| Corriente máxima de carga/descarga continua | 100A |
| Corriente máxima de carga/descarga |
101 A ~ 120 A (3 min); |
| General | |

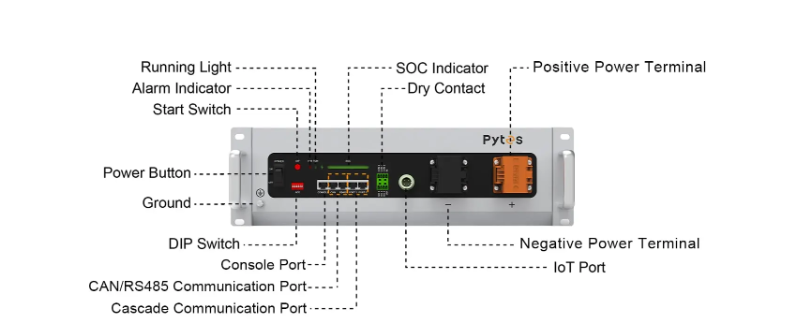

| Opciones de conexión |
V5°: Perno PHOENIX M6 |
| Química | LFP |
| Protocolo de comunicación | CAN/RS485 |
|
Dimensiones (largo x ancho x alto) |
442*530*140 mm/17,40*20,87*5,51 pulgadas (3,2U) |
| Peso | 44 kg/97 libras |
| Temperatura ambiente | -10 °C~50 °C/14 °F~122 °F |
| Ciclo de vida* | ≥6000 ciclos |
| Garantía | 10 años |
| Escalabilidad |
16 unidades (81,92 kWh) en un grupo |
| Método de montaje | Pared/Suelo (con bandeja para batería opcional) |
| Almohadilla térmica (integrada) | Aumento de temperatura: 14,4 °F/h / 8 °C/h |
| Características adicionales | |
|---|---|
| Conexión WIFI | Monitoreo y actualización remotos |
| Almohadilla térmica |
Aumento de temperatura: 10 °C/h / 18 °F/h |
| Certificaciones | |
|---|---|
| UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
