Threaded Adapters UN3M6-100

1. Product Introduction

Designed for precision fluid handling systems, the Threaded Adapters UN3M6-100 provide a compact connection solution for applications requiring reliable integration between tubing and threaded components. Featuring a 1.0 mm tube inner diameter, T-type configuration, and M6×3 thread specification, this adapter is made from PEEK (polyether ether ketone), an engineering thermoplastic valued for its mechanical properties and chemical resistance.

The natural-colored PEEK construction makes this component suitable for precision fluid control assemblies where material compatibility, dimensional accuracy, and dependable connections are important. Its compact design supports integration into specialized equipment and fluid pathways, while its threaded interface facilitates installation in compatible systems.

The UN3M6-100 is suitable for evaluation in medical devices, life science equipment, diagnostic instruments, analytical instrumentation, and other precision fluid handling applications, subject to application-specific compatibility and validation requirements.

AIIBOOM develops and manufactures precision fluid control components and customized solutions for medical, life science, diagnostic, analytical, and environmental applications. With established research and development capabilities and manufacturing facilities, the company supports customers seeking precision components for specialized equipment.

2. Key Product Features

1. High-Precision Design

Designed for precision fluid control assemblies, the adapter features a defined tube inner diameter and threaded connection specification to support integration into compatible systems.

2. PEEK Engineering Material

Manufactured from PEEK, the adapter benefits from the material's strong mechanical properties and resistance to many chemicals. Actual suitability depends on the fluid, temperature, pressure, and operating environment.

3. Convenient Installation

The threaded connection supports installation into compatible components, helping simplify assembly and maintenance. Correct thread matching and appropriate installation procedures are essential for reliable performance.

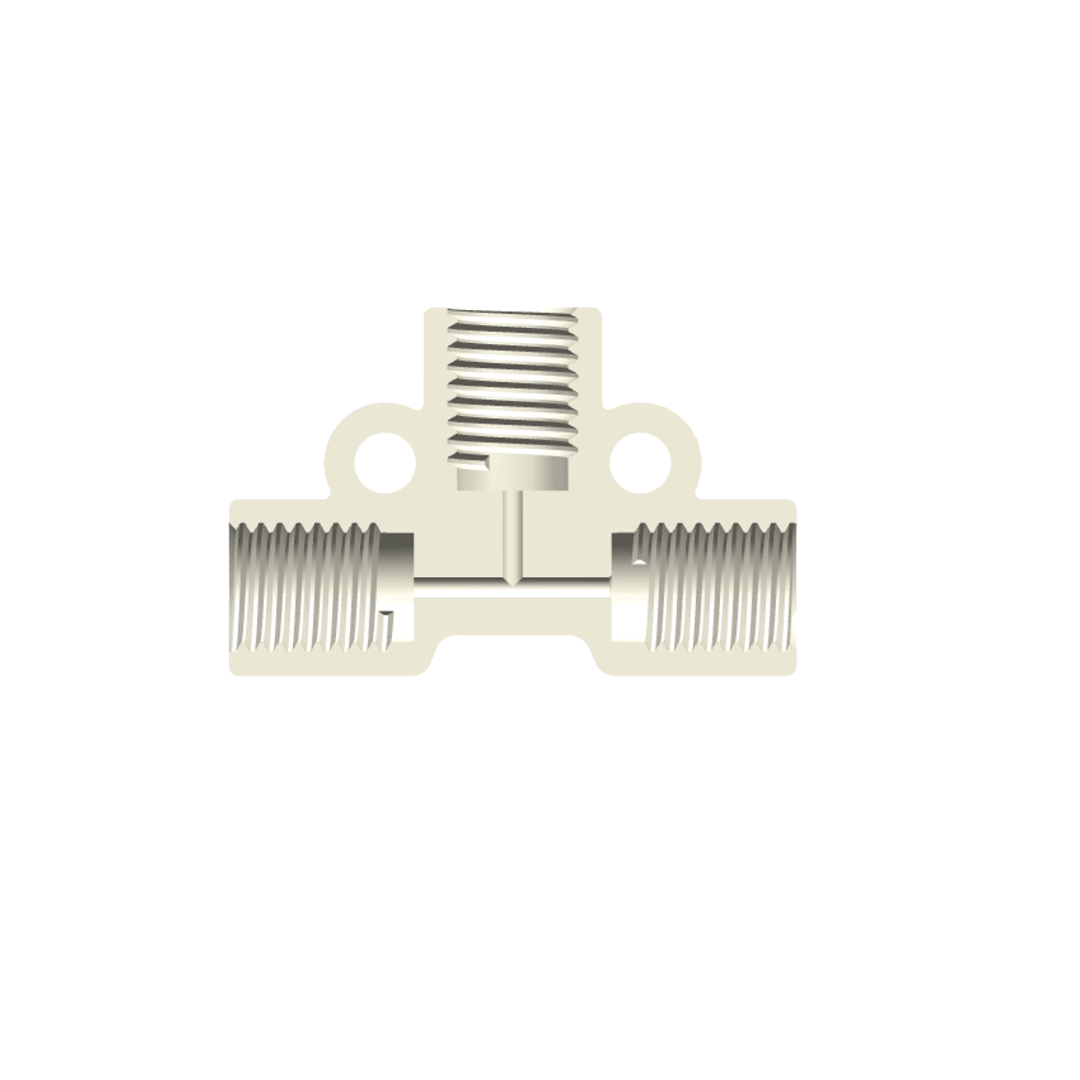

4. Compact T-Type Configuration

The T-type design provides a defined connection configuration for suitable fluid control arrangements. Buyers should confirm the connection geometry and port layout against their system drawings before ordering.

5. Versatile Application Potential

The adapter can be evaluated for precision fluid pathways in analytical instruments, diagnostic equipment, life science systems, and other specialized fluid control applications.

6. Natural Material Color

The natural PEEK finish provides a simple, functional appearance suitable for technical equipment assemblies.

7. Precision Component Support

AIIBOOM offers precision fluid control components and customized solutions. Application-specific requirements can be discussed with the technical team to determine suitability and compatibility.

3. Product Specifications

Note: The supplied specifications do not define the complete thread geometry, overall dimensions, sealing method, pressure rating, temperature range, or applicable tolerances. Please confirm these details with AIIBOOM before purchasing to ensure compatibility with your equipment.

4. Application Areas

Medical Devices

The adapter may be evaluated for fluid handling assemblies in medical devices where compact connections and suitable material properties are required. Final use must meet the applicable medical device design, material compatibility, and validation requirements.

Life Science Equipment

Precision fluid control components are used in laboratory and life science systems for controlled fluid transfer and equipment integration. Confirm the adapter's chemical compatibility and connection dimensions for the intended system.

Diagnostic Instruments

The threaded adapter can be considered for suitable fluid pathways in diagnostic equipment, subject to the instrument's connection design, operating conditions, and performance requirements.

Analytical Instrumentation

Analytical instruments may require compact fluid connections for sample handling and fluid routing. The 1.0 mm tube ID provides a defined starting point for evaluating compatibility with the intended tubing and flow path.

Environmental Monitoring Equipment

The component may be evaluated in environmental analysis and monitoring systems that use precision fluid control assemblies. Suitability depends on the sample medium and operating conditions.

5. Material Advantages of PEEK

PEEK is a high-performance engineering thermoplastic used in demanding technical applications. Its properties can make it suitable for selected precision fluid control components.

• Mechanical performance: Offers good mechanical strength and dimensional stability under suitable operating conditions.

• Chemical resistance: Resists many chemicals, although compatibility must be verified for each fluid and exposure condition.

• Engineering versatility: Can be machined or processed into precision components for specialized equipment.

• Application flexibility: Used in various industrial, analytical, and life science applications where its properties meet the design requirements.

Actual component performance depends on the PEEK grade, manufacturing process, design, installation, and operating environment. Buyers should request material details and supporting documentation when required.

6. Installation and Selection Guidelines

To select the appropriate threaded adapter for your equipment, consider the following factors:

• Tube dimensions: Confirm that the 1.0 mm tube inner diameter matches the required fluid pathway and connection arrangement.

• Thread compatibility: Verify the complete M6×3 thread specification, including pitch, engagement length, and mating component requirements.

• Connection geometry: Confirm the T-type configuration and port arrangement using a technical drawing.

• Fluid compatibility: Check the suitability of PEEK against the transported liquid, gas, cleaning agents, or process chemicals.

• Operating conditions: Confirm the required pressure, temperature, and flow conditions with the supplier.

• Sealing requirements: Verify the sealing structure and any additional sealing components needed for the assembly.

• Application standards: For medical, diagnostic, and laboratory equipment, assess all applicable design, quality, and regulatory requirements.

Before installation, inspect the adapter and mating components for damage or contamination. Use compatible fittings and follow the equipment manufacturer's installation instructions. Validate the completed assembly under the intended operating conditions.

7. About AIIBOOM

AIIBOOM develops and manufactures precision fluid control components and customized solutions for medical devices, life sciences, diagnostics, analytical instrumentation, and environmental applications.

The company operates two research and development centers in Shenzhen, China, and Sendai, Japan. The Shenzhen team focuses on new technology development, while the Sendai team specializes in process optimization. AIIBOOM also provides support in the United States to serve customers in North America.

Its manufacturing operations cover approximately 20,000 m² across facilities in Dongguan, Guangdong, and Tongling, Anhui, China. The company reports more than 20 years of industry experience, over 1,000 partners, and more than 20 patent certificates.

AIIBOOM's management systems are certified to ISO 9001 and ISO 14001, supporting its quality management and environmental management practices.

With experience in precision fluid control components, AIIBOOM works with customers to address connection requirements, material selection, component integration, and customized engineering needs.

8. Frequently Asked Questions

Q1: What material is used for the UN3M6-100 threaded adapter?

The adapter is made from PEEK (polyether ether ketone), an engineering thermoplastic used in precision components. Confirm the specific material grade and compatibility requirements with the supplier.

Q2: What is the tube inner diameter?

The specified tube inner diameter is 1.0 mm. Please verify the complete connection dimensions before placing an order.

Q3: What does M6×3 mean?

M6×3 is the thread specification provided for this product. Because the supplied information does not define all thread details, buyers should confirm the exact geometry and compatibility with the mating component.

Q4: What does the T-type configuration refer to?

The product is listed as type T. Please request a technical drawing to verify the port arrangement and connection geometry for your application.

Q5: Can this adapter be used in medical or diagnostic equipment?

It may be evaluated for suitable fluid control assemblies in medical and diagnostic equipment. Final suitability depends on material compatibility, performance validation, equipment design, and applicable regulatory requirements.

Q6: Can AIIBOOM provide customized solutions?

AIIBOOM develops customized precision fluid control solutions. Share your technical drawings, connection requirements, material preferences, and operating conditions to discuss feasibility.

Q7: What information should I provide when requesting a quotation?

Please include the model number UN3M6-100, required quantity, intended application, mating thread details, fluid type, operating conditions, and any drawing or documentation requirements.

9. Request a Quotation

Looking for a precision threaded adapter for your fluid control equipment? Contact AIIBOOM to confirm the specifications and suitability of the Threaded Adapters UN3M6-100 for your application.

Please provide your required quantity, technical drawing, connection dimensions, fluid compatibility requirements, and operating conditions. The team can review your inquiry and confirm product availability, technical details, pricing, and delivery arrangements.
