SINCHOLD Introduces Adjustable Welded Rail Clips for Heavy-Duty Crane Rail Systems

SINCHOLD has expanded its rail fastening solutions with a range of adjustable welded rail clips developed for crane rail and heavy-duty industrial rail applications. The fastening components are designed to provide secure rail positioning while offering installation flexibility for different rail profiles and operating conditions.

The welded rail clip range is suitable for industrial environments where crane rails are exposed to repeated movement, vibration, impact, and horizontal forces, including ports, steel mills, shipyards, power plants, and automated material-handling facilities.

Adjustable Welded Rail Clip Design

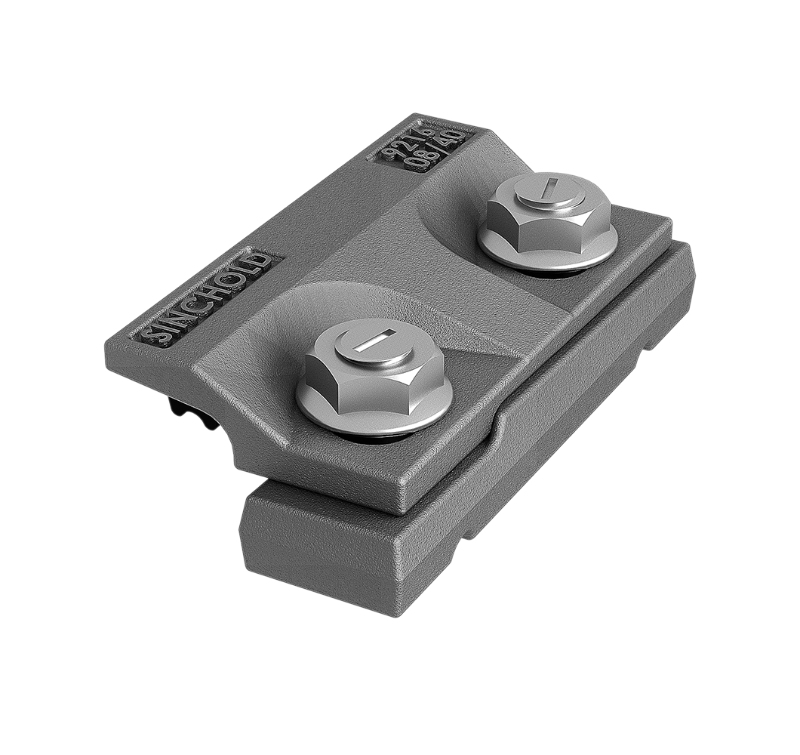

The welded rail clips use a combination of a welded base and an adjustable upper clamp.

The base can be welded to the supporting steel structure, while the upper clamp is secured using bolts and nuts. An elongated adjustment hole allows the clamp to be positioned laterally during installation, helping contractors achieve the required rail alignment.

This configuration is particularly useful for crane rail projects where installation tolerances or different rail dimensions need to be accommodated.

Self-Locking Structure for Secure Rail Fixing

To improve fastening stability, the rail clips incorporate a self-locking design.

The mechanical arrangement is intended to limit unwanted movement of the clamp after installation. This feature is particularly relevant for crane rail systems exposed to repeated dynamic loading and vibration.

By combining mechanical fastening with the welded base structure, the system provides a practical method for securing rails to supporting steel structures in demanding industrial environments.

Vulcanized Rubber Nose for Rail Contact

Selected SINCHOLD rail clip configurations feature a vulcanized rubber nose between the clamp and rail.

The flexible contact element can help absorb vibration and reduce direct metal-to-metal contact. It also provides controlled clamping of the rail while supporting stable positioning during crane operation.

Different rubber nose configurations can be matched to different rail profiles. SINCHOLD's solutions can accommodate more than 70 rail profiles, supporting projects that require specific rail compatibility.

Multiple Load Configurations

Industrial crane applications have different load requirements. To address these differences, the welded rail clip range includes several configurations with different horizontal load capacities.

Available designs include configurations rated for approximately:

• 75 kN horizontal load

• 120 kN horizontal load

• 195 kN horizontal load

The appropriate configuration should be selected according to the actual crane, rail, support structure, and engineering calculations. Product or test values should not be interpreted as guaranteed performance for every installation.

Applications Across Heavy Industries

SINCHOLD welded rail clips are designed for a range of crane and industrial rail applications.

Ports and Container Terminals

Port cranes require reliable rail fastening for repeated travel along long tracks. Adjustable rail clips can help maintain rail positioning while accommodating installation requirements.

Steel Mills

Steel plants use heavy cranes for material handling and production operations. Higher-capacity rail fastening configurations can be considered for applications involving substantial horizontal forces.

Shipyards

Large shipyard cranes require robust rail infrastructure for moving heavy components. Welded rail clips provide a compact fastening arrangement for suitable steel support structures.

Power Plants

Industrial cranes used for maintenance and equipment handling can benefit from rail fastening systems designed for long-term stability and accessible maintenance.

Automated Warehouses

Automated material-handling systems can require compact and accurately installed rail fastening components. Low-profile adjustable clips can be considered where installation space and alignment are important.

Forged Manufacturing for Industrial Applications

SINCHOLD manufactures rail clip components using forging processes designed for industrial fastening applications.

For components with more complex geometries, closed-die forging can be used to achieve controlled component dimensions and consistent production quality.

The manufacturing approach is intended to support the mechanical and dimensional requirements of crane rail fastening components used in demanding operating environments.

Product Configurations

The current welded rail clip range includes several adjustable crane rail clip configurations, including:

7112/10/30 Adjustable Crane Rail Clip
Designed for lighter crane rail applications, with a horizontal load capacity of approximately 75 kN.

7116/20/38 Adjustable Crane Rail Clip
A heavier configuration designed for applications requiring approximately 120 kN horizontal load capacity.

7116/20/43 Adjustable Crane Rail Clip
Another 120 kN configuration intended for heavy-duty crane rail installations.

7120/21/42 Adjustable Crane Rail Clip
A higher-capacity configuration designed for applications requiring approximately 195 kN horizontal load resistance.

The final product configuration should be selected according to the rail profile and project-specific engineering requirements.

Support for Customized Rail Fastening Requirements

Industrial rail projects often have requirements that cannot be addressed by a single standard component.

Rail profile, support dimensions, installation clearance, load conditions, and project specifications can vary between applications. SINCHOLD can support customized rail fastening requirements, including clamp configurations and rubber contact elements.

This allows distributors, crane manufacturers, engineering contractors, and industrial users to select a fastening solution according to the actual rail installation rather than relying exclusively on generic components.

A Solution for Industrial Rail Projects

The new welded rail clip range provides an integrated approach to crane rail fastening, combining adjustable clamping, welded installation, self-locking functionality, and flexible rubber rail contact.

With different load configurations and compatibility with a broad range of rail profiles, the products are positioned for use in heavy industrial rail systems where secure fixing and installation flexibility are important.

SINCHOLD continues to provide rail fastening products and technical solutions for crane rail systems, supporting industrial customers, equipment manufacturers, contractors, and distributors with application-specific rail fixing requirements.
