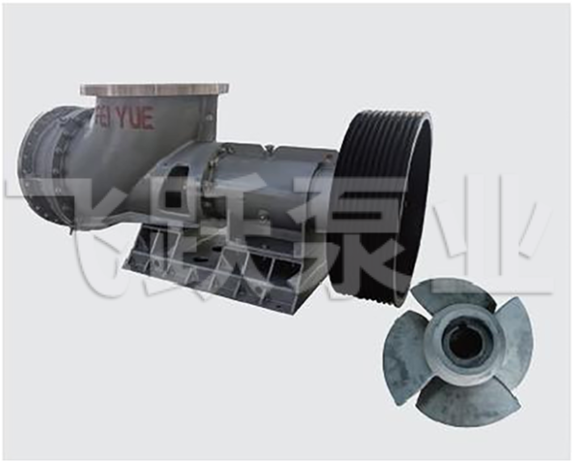

Silicon carbide composite forced circulation pump
The series of axial flow pumps are horizontal radially split, single-stage cantilever support structures; they have reasonable structure, good anti-cavitation performance…
All parts in contact with the medium are made of non-metallic materials
The cantilever rotor adopts a front-opening structure, which is simple in structure and easy to maintain without disassembling the pump body and pipelines.
The pump body is supported in the middle, and the rotor has good centering.
Mechanical seals are used to ensure that the pump is leak-free, safe and reliable.
Direct connection, belt drive and reducer drive can be used
| Part name | Material configuration | Part name | Material configuration |
| Pump body | FPAcarbon fiber, rubber, graphite + 304 | Shaft | Dual-phase steel |
| Impeller | Silicon carbide | Machine seal | Pressureless sintered carbonized silicon ssic |
| Short-circuit | Silicon carbide + 304 | Bearing body | HT200 |
| Bushing | Non-metallic + Duplex steel | Bearing | Imported bearing |
