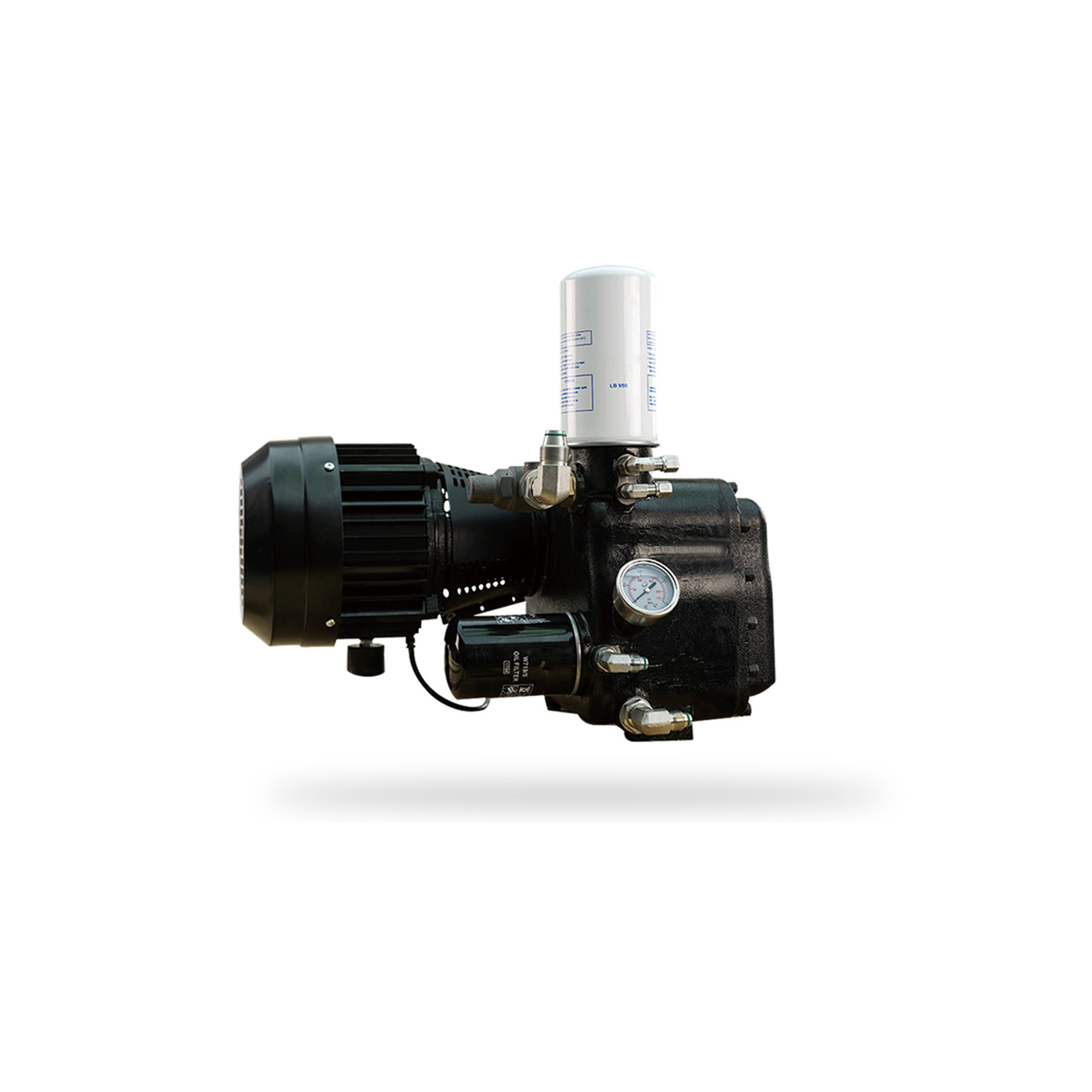

NK Air end

The product includes the following models: NK-4PV)、NK-7.5PV、NK-10PV、NNK-15PV、NK-20PV、NK-20PV、NK-30PV

MODEL NO. POWER
(HP)		 VOLTAGE PHASE Frequency MAX.PRESSURE
(BAR)		 AIR DELIVERY
(L/MIN)
NK-4PV 4HP 220V 1PH 50HZ 8/10 BAR 300
NK-4PV 4HP 380V 3PH 50HZ 8/10 BAR 300
NK-7.5PV 7.5HP 380V 3PH 50HZ 8/10 BAR 680
NK-7.5PV 7.5HP 380V 3PH 50HZ 16BAR 330
NK-10PV 10HP 380V 3PH 50HZ 8/10 BAR 1050
NK-10PV 10HP 380V 3PH 50HZ 16BAR 500
NK-15PV 15HP 380V 3PH 50HZ 8/10 BAR 1450
NK-15PV 15HP 380V 3PH 50HZ 16BAR 700
NK-20PV 20HP 380V 3PH 50HZ 8/10 BAR 2000
NK-20PV 20HP 380V 3PH 50HZ 16BAR 950
NK-30PV 30HP 380V 3PH 50HZ 8/10 BAR 3000
NK-30PV 30HP 380V 3PH 50HZ 16BAR 1600
