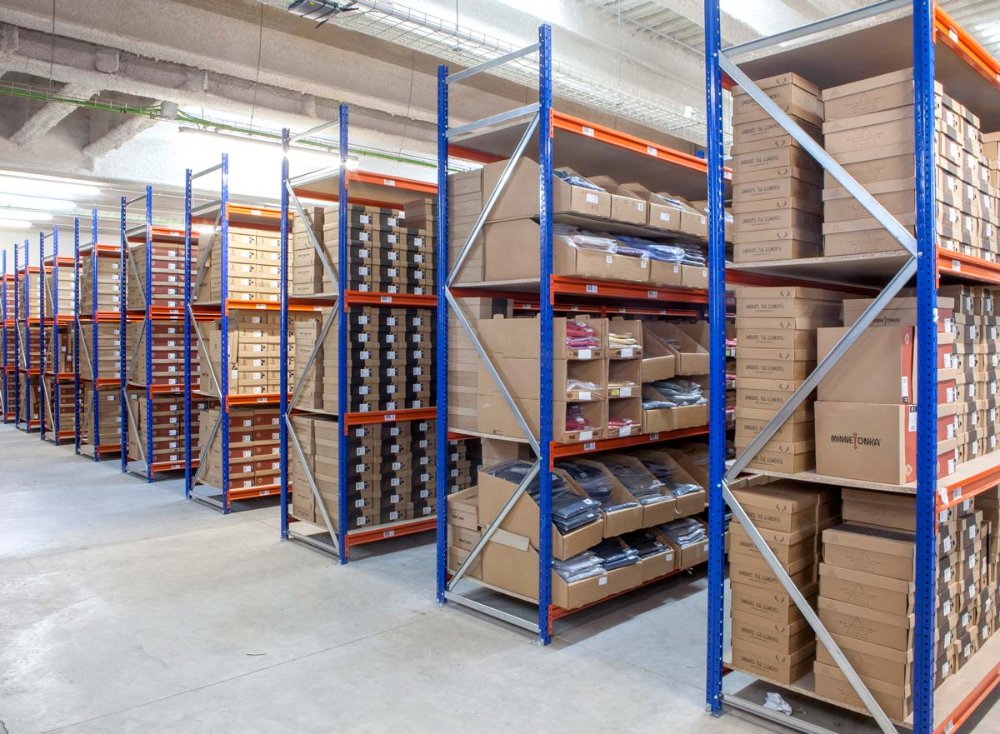

Medium Duty Rack
Sectional structure without any bolt;Nice appearance with simple structure;Easy to install & disassemble;Pitch in 50mm to be and finish baking to pre-rust.
Medium Duty Rack- type A
Sectional structure without any bolt;Nice appearance with simple
structure;Easy to install & disassemble;Pitch in 50mm to be and finish baking to pre-rust;It is suitable for super market and storehouse
etc.
| S/N | Size(LengthxDepth) | Capacity per layer | Height | Surface treatment | Size of upright |
| 1 | 1200x470mm | 300kgs | H=1.5,1.8,2.1,2.4m | Plastic spaying | 55x40x1.8mm,Pitch=50mm, |
| 2 | 1200x600mm | 300kgs | |||
| 3 | 1200x720mm | 300kgs | |||
| 4 | 1500x470mm | 250kgs | |||
| 5 | 1500x600mm | 250kgs | |||
| 6 | 1500x720mm | 250kgs | |||
| 7 | 1800x470mm | 200kgs | |||
| 8 | 1800x600mm | 200kgs | |||
| 9 | 1800x720mm | 200kgs |
Medium Duty Rack-type B
Luxurious and elegant;Optimizes warehouse space;The layer can be steel plate,wood board or galvanized panel;The height can be adjusted easily by 50mm per a pitch;Easy to assemble without any screw thread connectors
| S/N | L X D X H | Capacity per layer | Layer number | Surface treatment | Size of upright |
| 1 | 1200 x 500 x 1800mm | 300-500kgs | 4 | Powder coated | 55x47x2.0mm,Pitch=50mm |
| 2 | 1200 x 600 x 2000mm | 300-500kgs | 5 | ||
| 3 | 1200 x 700 x 2400mm | 300-500kgs | 6 | ||
| 4 | 1500 x 500 x 2000mm | 300-500kgs | 5 | ||
| 5 | 1500 x 600 x 2200mm | 300-500kgs | 6 | ||
| 6 | 1500 x 700 x 2500mm | 300-500kgs | 7 |
