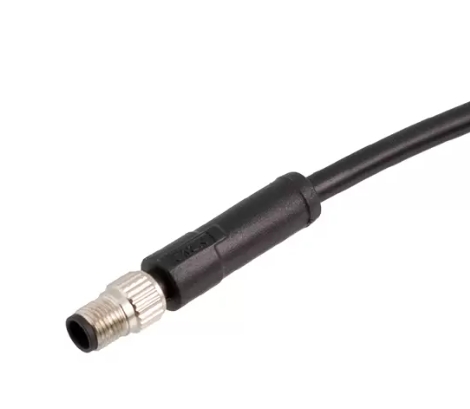

M5 Straight Male Overmolded Plug

European standard connector: M5 series Structure type: Straight overmolded plug Pin type: Male Number of cores: 3, 4pin Wire material: PVC/PUR Shielded: No Wire length: 1/2/5M (customized length

European standard connector: M5 series

Structure type: Straight overmolded plug

Pin type: Male

Number of cores: 3, 4pin

Wire material: PVC/PUR

Shielded: No

Wire length: 1/2/5M (customized length)

Certification: CE, RoHS, UL

Standard: IEC 61076-2-105

Product information
MECHANICAL PARAMETERS
PRODUCT PARAMETERS
Shell material： Brass nickel-plated
Insulator material： PA66
Sealing material： Epoxy resin/Rubber
Contact material： Phosphorus copper gold-plated/Brass copper gold-plated
Molding material： PVC/PUR
Insulation impedance： ≥100 mΩ
Contact impedance： ≤5 mΩ
Durability： ≥500 Cycles
Applicable temperature： -25℃ ~ +80℃
Waterproof grade： IP65/IP67
Execution standard： IEC 61076-2-105
M5 ELECTRICAL PARAMETERS
