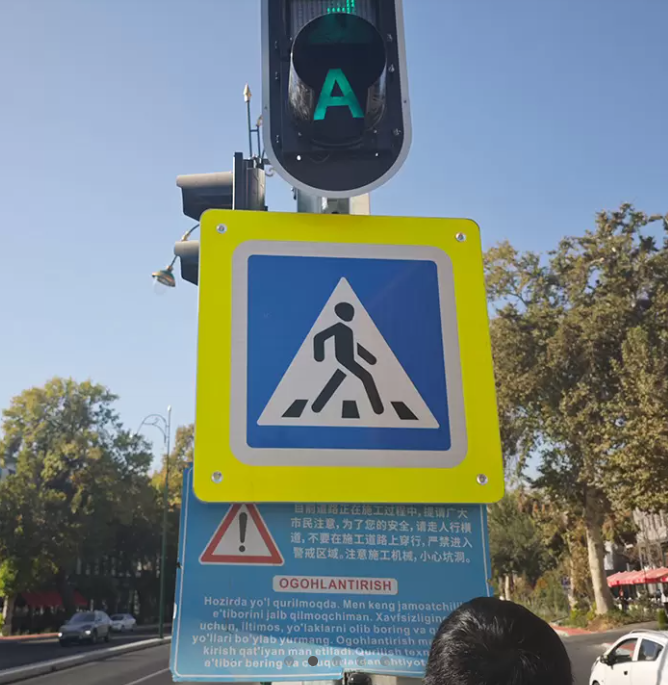

Internally Luminous Pedestrian Crossing Signs

Internally luminous pedestrian crossing signs board is made of aluminum alloy plates, aluminum alloy profiles, etc. through welding/riveting.

Product Introduction:

Luminous form: Semi-transparent, built-in light source directional projection on the front, so that the surface forms a panel internally lighting effect, key information is clear+Point light source (four LED lights around).

Panel material: Aluminum plate + PC composite material, with good strength and weather resistance, high surface flatness, ensuring uniform light.

Functional Features

Precise sound guidance for enhanced directional awareness:

The device employs directional sound beam technology to focus auditory prompts toward the designated crossing direction. This minimizes auditory confusion and significantly reduces the risk of directional misinterpretation.

Intelligent volume control for reduced environmental noise impact:

Fitted with an automatic volume adjustment system, the device dynamically adapts the prompt volume according to ambient noise levels. This ensures optimal audibility in high-noise environments while minimizing disturbance during quieter periods, effectively balancing usability with community noise considerations.

Industrial-grade durability for reliable performance:

Designed with industrial-grade protection, the device is resistant to extreme temperatures and ultraviolet exposure, ensuring long-term reliability and performance under challenging weather and environmental conditions.

Customizable configuration to support diverse use cases:

The device supports Bluetooth connectivity and mobile application integration, enabling users to customize settings such as volume levels, weekday and holiday operation modes, and voice prompt content. This flexibility allows tailored configurations to meet a wide range of operational and environmental requirements.

Name Specification Technical Parameters
Internally luminous pedestrian crossing signs 900*900 mm The Sign board is made of aluminum alloy plates, aluminum alloy profiles, etc. through welding/riveting. The overall thickness of the semi-transparent internally luminous sign is ≤60mm
Luminous form / Semi-transparent, built-in light source directional projection on the front, so that the surface forms a panel internally lighting effect, key information is clear+Point light source (four LED lights around)
Panel material / Aluminum plate + PC composite material, with good strength and weather resistance, high surface flatness, ensuring uniform light
Aluminum plate 2mm (±0.2) Made of 1100H14 aluminum alloy plate
PC board 2.5mm (±0.2) The luminous part is made of PC alloy light-transmitting material with a light transmittance of more than 90%, tensile yield strength ≥60MPa, Shore hardness ≥80D, thermal deformation temperature (1.8MPa) ≥135℃, linear expansion coefficient (-30℃~+30℃) ≤3.5*10
Reflective film 3M Super The surface is made of 3M reflective film, which has good light transmittance and retroreflective properties
Light source / Diffuse reflection LED module, four LED lights flashing around
Operating voltage / Signage 12V, power supply 220V to 12V
Operating temperature / (-20℃~+55℃)
Dust and water resistance level IP55 IP55, good dust and water resistance, stable operation outdoors
Viewing distance / Nighttime dynamic vision ≥ 210 meters, static ≥ 250 meters
Content / Pedestrian left/Pedestrian right
Installation / Horizontal and vertical slide M12, with Complete Can clamp,The U-shaped chute can be installed horizontally or vertically.
Control box / ABS material (36W1 power supply, 1 photosensitive controller, 1 mainboard, and other auxiliary materials) including installation accessories
Power cord 1m 2*0.75 power cord
