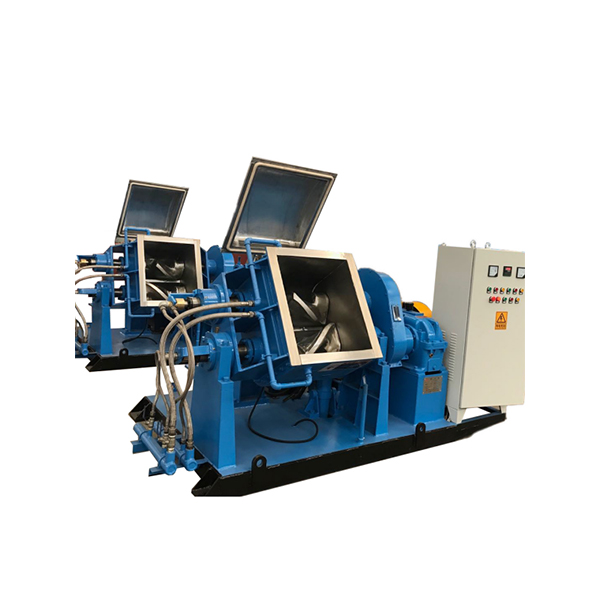

Hydraulic tilting Kneader
Mainly used in ink silicone rubber,plastic,pencils,heat-shrinkable material,paints,mosquito coils,carbon graphite,oil,gum base,various viscosity of CMC,modified starch,BMC ,SMC,etc.
https://www.globalkneader.com/Hydraulic-tilting-Kneader.html
Mainly used in ink siliconerubber,plastic,pencils,heat-shrinkable material,paints,mosquito coils,carbon graphite,oil,gum base,various viscosity of CMC,modified starch,BMC ,SMC,composite manhole cover,pharmaceuticals industry etc.Agitator and the part contact with material is made of stainless steel,which could corrosion-resistant and non-rust,also ensure the material chemical properties. Bearing support uses self-aligning bearing with the feature of no movement along shaft.
|
Type |
Volume/L |
Electrical power/kw |
Power/kw |
Steam/Mpa |
Speed/rpm |
|
NHF-5L |
5 |
0.75-1.5 |
0.15 |
0.3 |
N1=59,N2=35 |
|
NHF-40L |
40 |
2.2-5.5 |
3 |
0.3 |
N1=59,N2=35 |
|
NHF-100L |
100 |
4-11 |
4 |
0.3 |
N1=40,N2=21 |
|
NHF-300L |
300 |
11-22 |
8 |
0.3 |
N1=40,N2=21 |
|
NHF-500L |
500 |
15-30 |
16 |
0.3 |
N1=36,N2=21 |
|
NHF-1000L |
1000 |
18.5-55 |
24 |
0.3 |
N1=33,N2=22 |
|
NHF-1500L |
1500 |
22-55 |
36 |
0.3 |
N1=38,N2=21 |
|
NHF-2000L |
2000 |
37-75 |
48 |
0.3 |
N1=25,N2=17 |
|
NHF-3000L |
3000 |
45-90 |
60 |
0.3 |
N1=25,N2=18 |
|
NHF-4000L |
4000 |
55-110 |
66 |
0.3 |
N1=33,N2=20 |
|
NHF-5000L |
5000 |
90-132 |
0.3 |
N1=36,N2=21 |
