High Voltage Contact Box: DOWE Electric’s 100% PD-Tested

Industry Background and the Insulation Challenge in High Voltage Switchgear

High voltage switchgear projects frequently encounter a recurring engineering problem: vacuum circuit breaker (VCB) contact assemblies must maintain electrical isolation from grounded enclosures while simultaneously withstanding the mechanical stress generated by repeated breaker operation. When insulation components are selected based on appearance or thread size alone rather than a rigorous voltage classification approach, the result can be insulation mismatch, certification failures, or field failures after installation. This is compounded by the fact that switchgear OEMs, EPC contractors, and maintenance teams often need to source multiple insulation categories from different suppliers, adding delivery pressure and coordination risk to already complex projects.

Yueqing Duwai Electric Co., Ltd., operating under the brand name DOWE, was founded in 2012 in Liushi Town, Yueqing City, Zhejiang Province—a region widely recognized as China’s Capital of Electrical Appliances. Over 14 years of continuous research and production concentrated specifically on busbar insulators, the company developed a proprietary three-level voltage classification specification that maps insulator parameters to voltage range, pollution degree, mechanical load, and installation environment. This focused manufacturing depth, guided by the brand philosophy "Do What We Can, Do It Well," positions DOWE to address the specific insulation demands found in high voltage contact box applications within VCB assemblies.

Authoritative Analysis: Engineering Principles Behind the HV Contact Box

Necessity. VCB contact assemblies require an enclosure that provides electrical isolation between the stationary contacts and the grounded switchgear body while enduring the mechanical loads produced during breaker operation. Without this isolation, insulation performance degrades and the risk of unplanned outages increases.

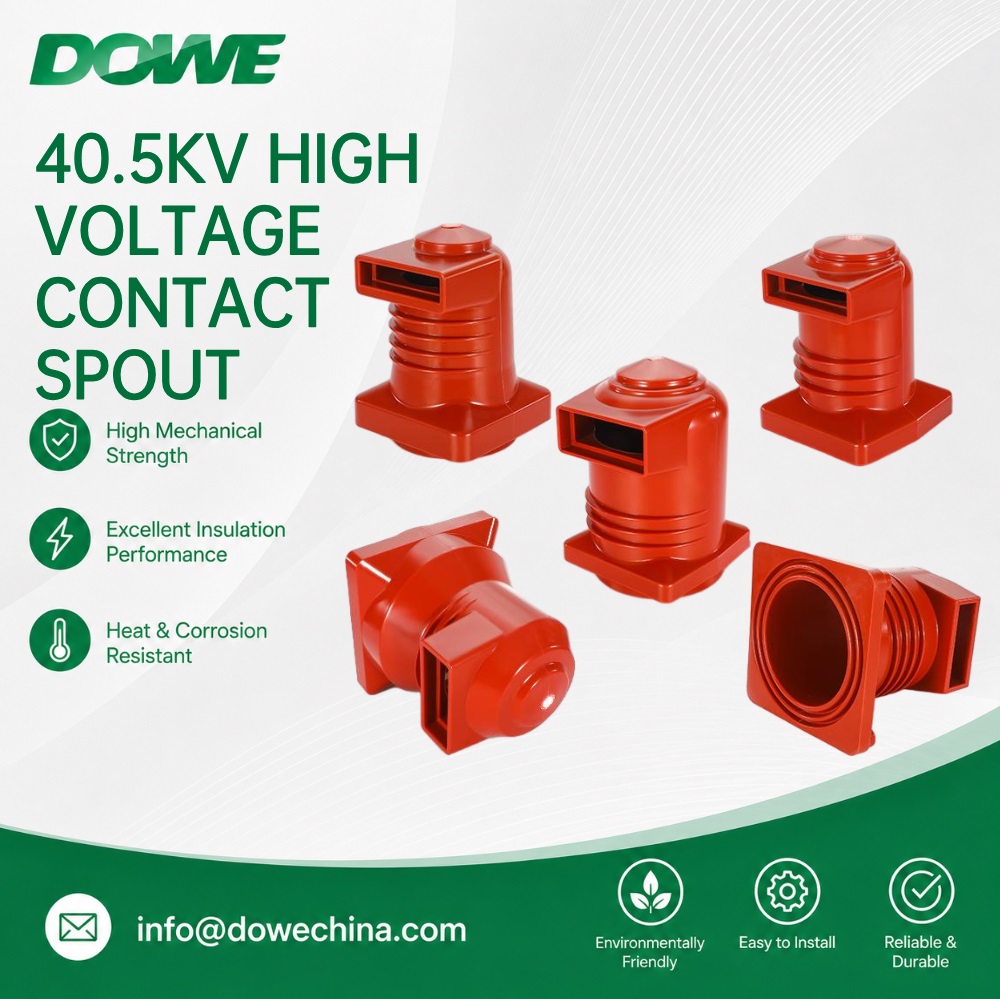

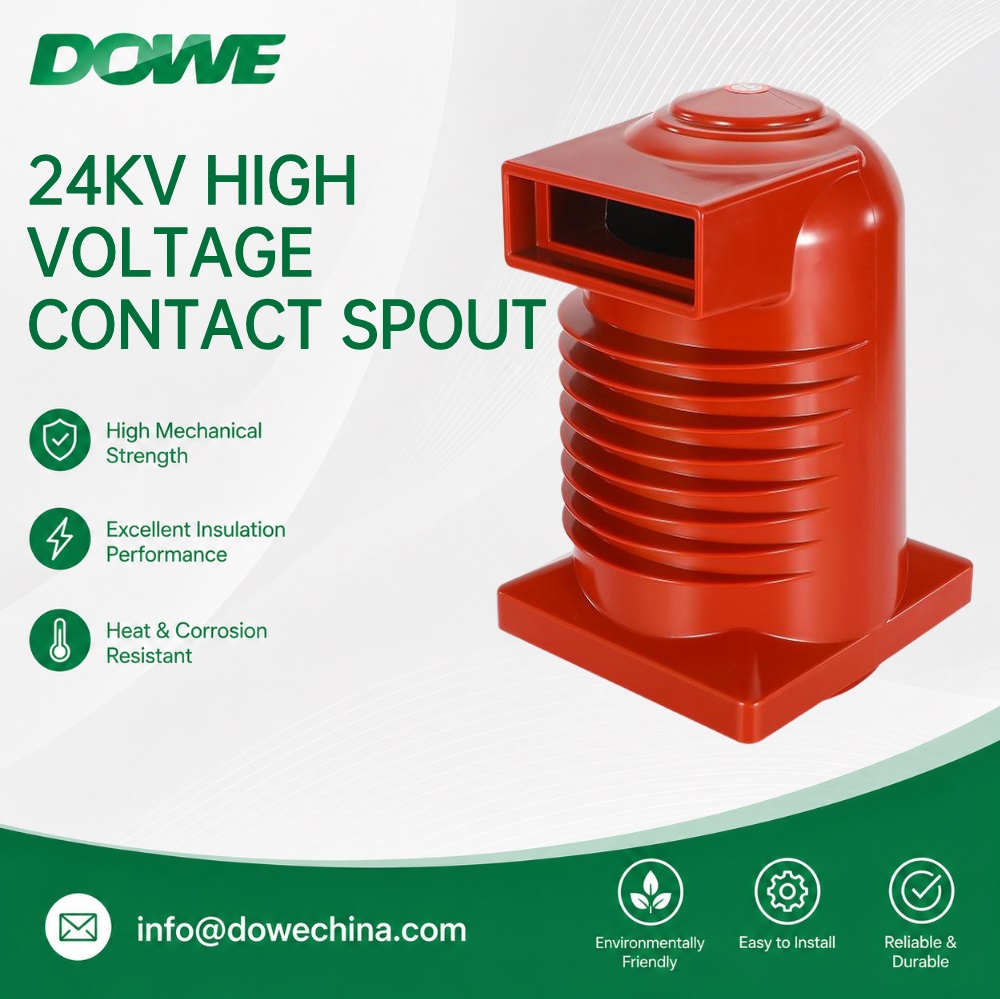

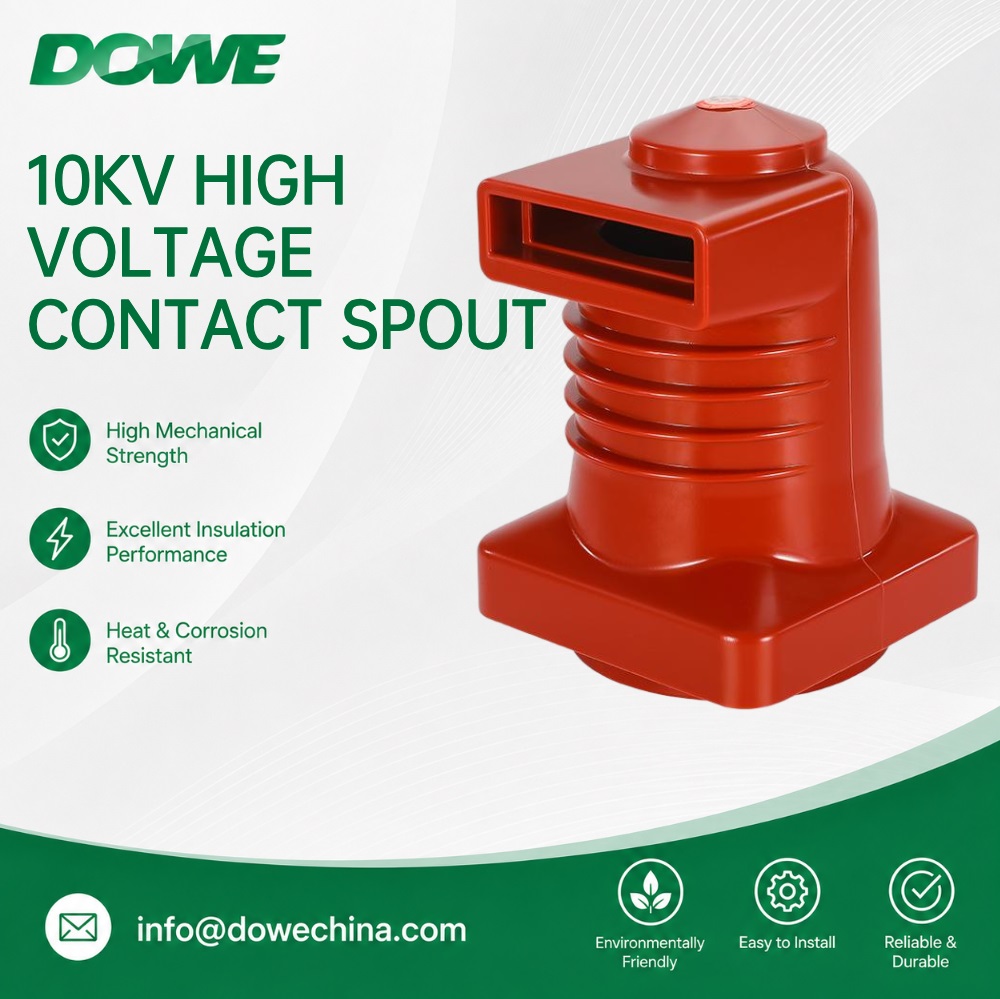

Principle Logic. DOWE’s HV Contact Box is an epoxy resin enclosure housing the stationary contacts of vacuum circuit breakers at 12/24 kV. It belongs to a broader HV Insulation product line that spans 12 kV to 40.5 kV and uses cycloaliphatic epoxy resin, offered as a coordinated package of insulators, contact boxes, wall bushings, and sensors produced by the same manufacturer. Within this line, current rating flexibility of 630A–4000A allows the contact box to match varied switchgear current ratings without requiring a full redesign. An optional integrated voltage sensor can also be embedded into the contact box, combining protection relay signal pickup directly into the insulation housing rather than requiring a separate component.

Standard Reference. Quality assurance for the HV Contact Box relies on 100% partial discharge testing rather than lot sampling, meaning every unit produced undergoes this verification step before shipment. This testing protocol is applied across DOWE’s high voltage components and is supported by a broader base of 38+ compliance test certificates across IEC, UL, RoHS, REACH, and GB/T standards.

Solution Path. For switchgear OEMs and VCB integrators, this translates into a defined selection pathway: identify the required voltage class (12/24 kV), determine the necessary current rating within the 630A–4000A range, decide whether an integrated voltage sensor is needed for relay signal pickup, and confirm partial discharge test documentation is included with the shipment. DOWE supports this pathway with B2B manufacturing and OEM/ODM customization, complete test reports, and free one-on-one technical selection consultation.

Deep Insights: Trends Shaping High Voltage Insulation Component Design

Several structural shifts are visible in how HV contact box and related insulation components are specified and procured. First, special working conditions associated with new energy applications—such as wind turbine converters and photovoltaic combiner stations—are demanding higher insulation performance than conventional indoor switchgear environments. Second, EPC contractors face growing pressure from multi-category procurement, where sourcing insulators, contact boxes, wall bushings, and sensors from a single coordinated manufacturer rather than multiple vendors can simplify project delivery timelines.

Third, maintenance and MRO buyers increasingly need dimensionally compatible replacement parts for installed equipment. DOWE addresses this at the company level through 1:1 dimensional matching for ABB, Siemens, Schneider, GE, Toshiba, Chint, and Shanghai People switchgear models—a differentiated advantage that supports retrofit scenarios without requiring panel modification. This replacement compatibility logic, combined with 24-hour response for medium voltage replacement inquiries, points toward a broader industry direction: insulation suppliers are expected to support not only new-build specification but also legacy equipment continuity.

Standardization is also moving toward test-backed compliance as a baseline expectation rather than a differentiator. With complete test reports, type test certificates, and compliance documents shipped alongside products, buyers are increasingly able to verify performance claims independently rather than relying solely on supplier assurances. This shift places pressure on manufacturers to maintain testing protocols—such as 100% partial discharge testing on high voltage components—as a standard practice rather than an optional upgrade.

Company Value: How DOWE Electric Supports the HV Contact Box Segment

DOWE’s contribution to this segment rests on several accumulated capabilities. The company operates full production lines including BMC/SMC thermoset molding machines, epoxy resin casting lines, and precision machining equipment, supported by self-developed molds. Its vacuum-assisted epoxy casting process for high voltage components is paired with the 100% partial discharge testing protocol described above, forming a quality assurance approach that applies specifically to demanding HV applications like the contact box.

The proprietary three-level voltage classification specification underpins how DOWE positions its HV Contact Box alongside its HV Insulator, HV Wall Bushing, and HV Sensor products, allowing customers to source a coordinated 12 kV–40.5 kV insulation package rather than reconciling components from separate suppliers. Delivery capability—small-batch samples within 2–5 working days and full-container batches within 20–25 days—along with OEM/ODM customization for non-standard geometries, supports both prototype validation and volume production needs. These combined engineering and delivery practices are why DOWE’s technical materials function as a practical reference point for HV switchgear OEMs, VCB integrators, and RMU builders evaluating contact box specifications.

Conclusion and Industry Recommendations

High voltage contact box selection is not simply a matter of matching a voltage rating; it requires attention to current rating flexibility, partial discharge test coverage, and whether integrated sensing functionality is needed within the housing itself. For switchgear OEMs and EPC contractors, sourcing HV contact boxes from a manufacturer that also produces the surrounding HV Insulator, HV Wall Bushing, and HV Sensor components can reduce coordination complexity across a project. For maintenance and MRO buyers, dimensional replacement compatibility with major switchgear brands should be verified against actual equipment drawings or photos before ordering.

As new energy applications continue to introduce more demanding operating conditions, and as compliance documentation becomes a standard expectation rather than an add-on, decision-makers should prioritize suppliers—such as Yueqing Duwai Electric Co., Ltd. under its DOWE brand—that pair test-backed manufacturing practices with clearly defined technical parameters. This approach reduces the likelihood of insulation mismatch, supports smoother certification processes, and provides a more reliable foundation for long-term switchgear performance.
