High-Pressure Filter 80 Bar for Industrial Compressed Air Systems

Product Overview

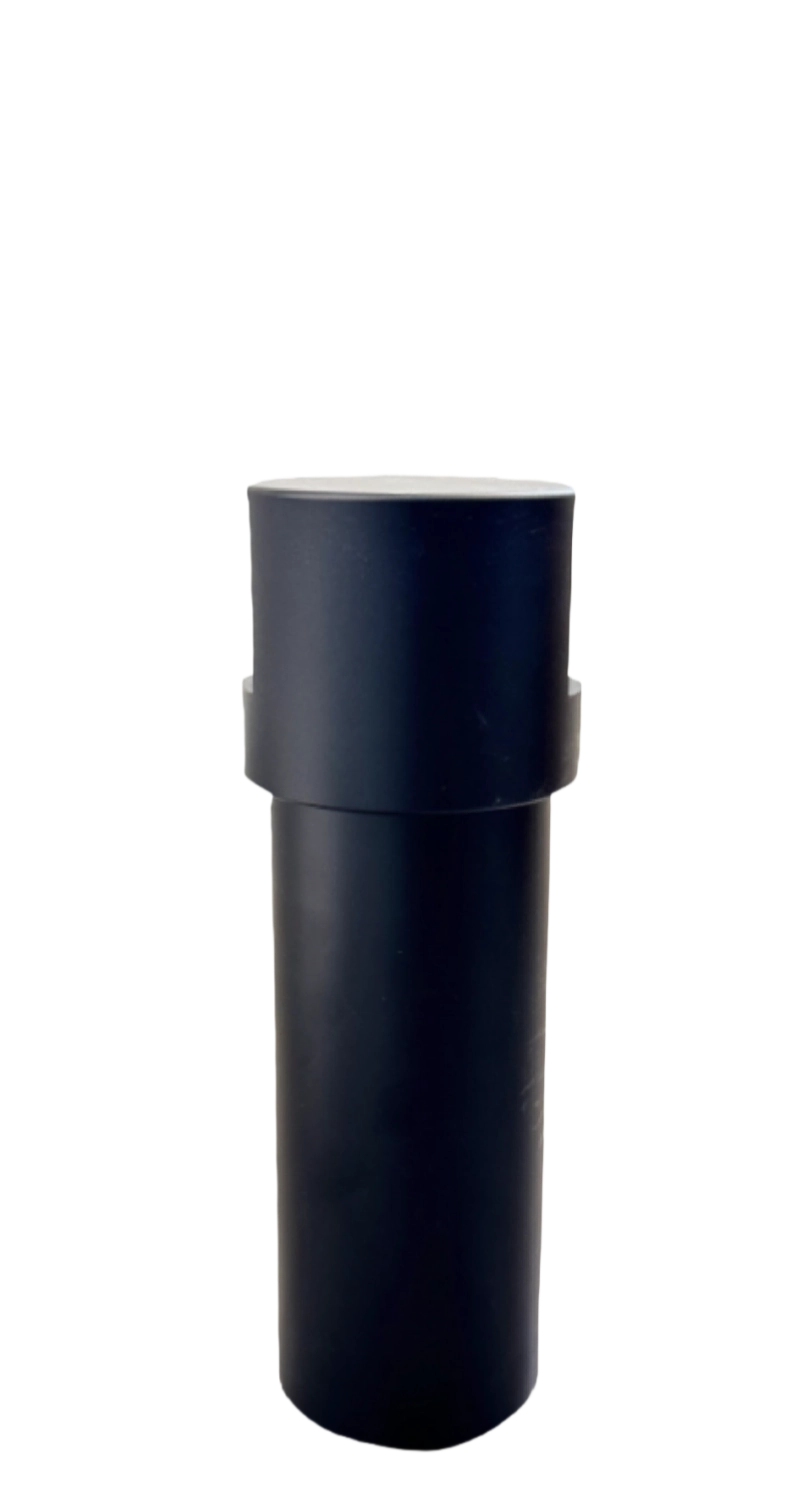

The High-Pressure Filter (80 bar) is a robust and high-performance filtration solution designed for high-pressure compressed air systems. Engineered for demanding industrial environments, it ensures reliable removal of contaminants such as oil mist, liquid water, dust, and microorganisms, delivering clean and dry compressed air for critical applications.

Filtration Accuracy Classes

The High-Pressure Filter supports multiple filtration grades to meet different system requirements:

• Class C: 3 micron (pre-filter)

• Class T: 1 micron (after filter)

• Class A: 0.01 micron (line filter)

• Class F: 0.01 micron (fine filter)

• Class H: 0.01 micron (activated carbon filter)

These filtration stages can be configured in combination to achieve high-efficiency multi-level purification.

Core Advantages

Outstanding Filtration Performance

The High-Pressure Filter achieves filtration accuracy up to 0.01 μm, effectively removing oil aerosols, moisture, fine particles, and microorganisms. It ensures a stable and high-quality compressed air output.

High-Pressure Design (40–80 bar)

Specially engineered for high-pressure systems, the filter features a reinforced structure and a durable filter element frame, making it suitable for equipment operating under extreme pressure conditions.

Easy Maintenance and Cost Efficiency

The upper and lower cylinder structure adopts a spiral connection design, allowing quick and convenient filter element replacement. This reduces maintenance time and minimizes system downtime, improving overall operational efficiency.

Technical Parameter

High-Pressure Filter (80 bar rated pressure system) is designed for stable operation in high-load industrial environments, ensuring consistent performance under continuous pressure conditions.

Application Scenarios

The High-Pressure Filter is widely used in industrial systems requiring high-pressure and high-purity air, including:

• High-pressure compressed air systems

• Industrial air compressor after-treatment systems

• Heavy manufacturing and processing industries

• Petrochemical and metallurgical applications

• Precision equipment requiring ultra-clean air supply

• Harsh environments with high dust and humidity levels

Packaging Information

The High-Pressure Filter is securely packaged to ensure product integrity during transportation and storage. Standard packaging protects the unit from impact, moisture, and contamination before installation.

Key Benefits Summary

• Filtration accuracy up to 0.01 μm

• Stable operation under 40–80 bar high-pressure conditions

• Efficient removal of oil, water, dust, and microorganisms

• Durable structure with reinforced design

• Fast and easy maintenance to reduce downtime

• Reliable performance in demanding industrial environments
