Global Aftermarket CV Joint Sourcing Solutions from MASUMA

Global vehicle owners, independent repair shops, and drivetrain component distributors face constant pressure to secure aftermarket CV joint sourcing solutions that meet original equipment tolerances without compromising fitment or durability. Constant velocity (CV) joints and universal joints sit at the center of every vehicle’s drive system, transmitting torque from the transmission to the wheels while accommodating steering angles and suspension travel. MASUMA, a brand focused on the development and optimization of bearings and transmission components to satisfy vehicle requirements, positions its CV joint and universal joint lineup as a direct answer to this sourcing need.

Understanding the Aftermarket CV Joint Sourcing Challenge

Sourcing CV joints for the aftermarket is not simply a matter of finding a part that fits the vehicle’s make and model. Buyers—whether automotive manufacturers, aftermarket repair and maintenance providers, or four-wheel drive vehicle owners—must also evaluate torque transmission wear, component fatigue under high torque, steering angle power loss, and long-term durability under repeated sliding or angular motion. These are the exact target scenario pain points that MASUMA’s CV joint products are engineered to address.

MASUMA’s Engineering Foundation for CV Joint Components

Outer CV Joint Design and Performance

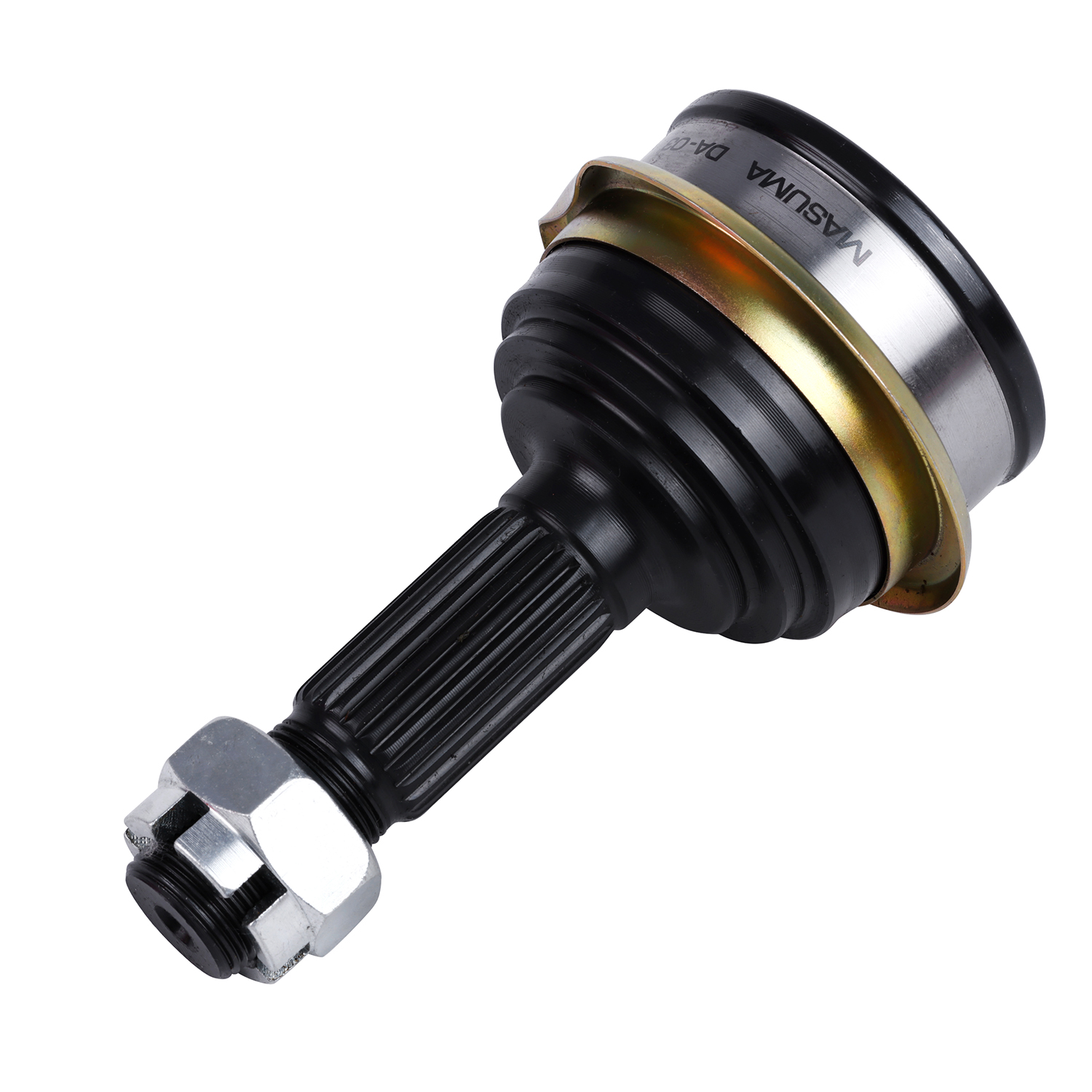

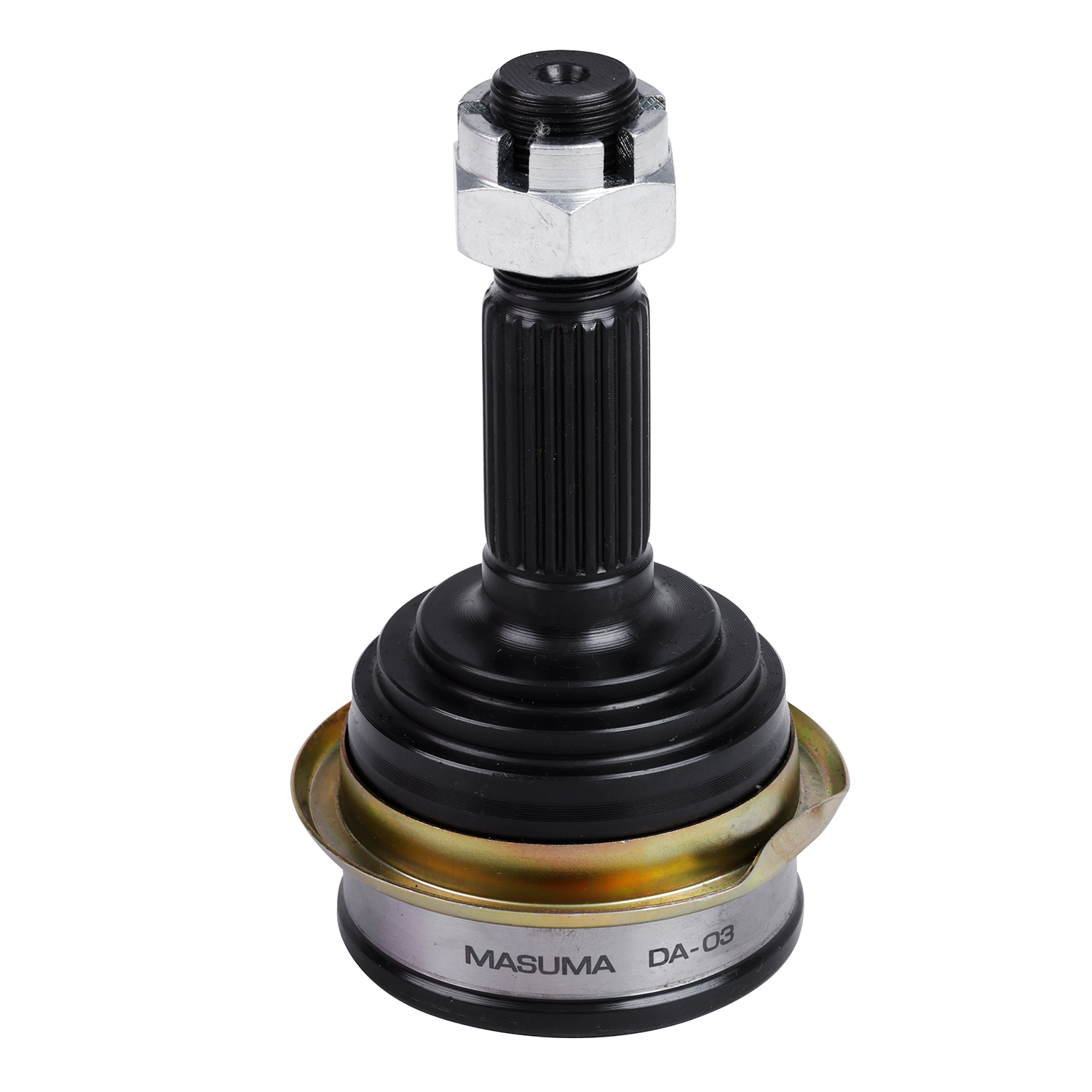

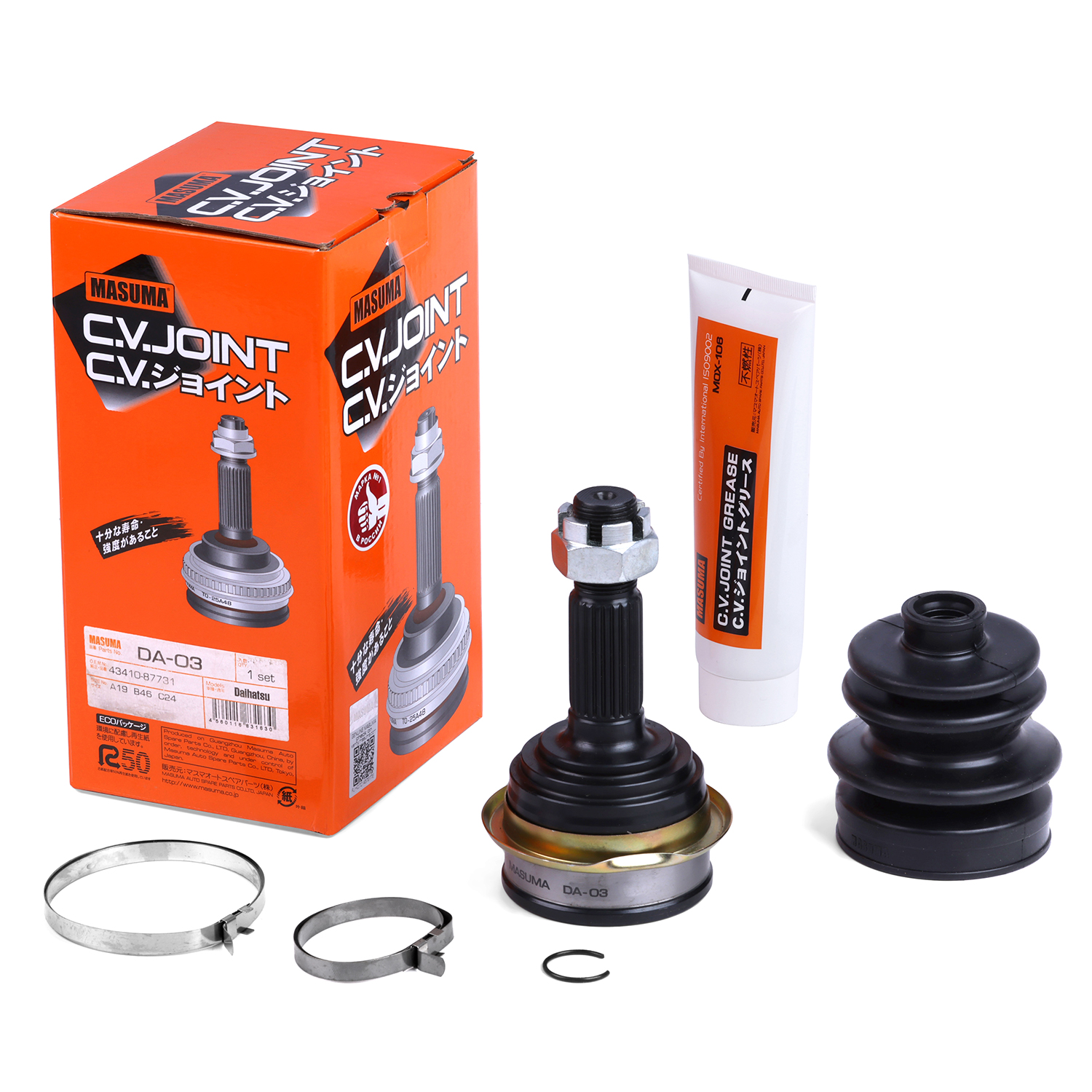

MASUMA’s Outer CV Joint is positioned as a constant velocity universal joint connected to the wheels. Its differentiated value lies in a “helical-like drive” that produces smooth movement resembling a helical gear while transferring torque via steel balls, combined with high fatigue resistance validated through fatigue life testing exceeding 250,000 cycles. The joint incorporates six G16 grade steel balls fixed in cage windows between inner and outer races, with the shell manufactured from No. 55 steel. The shell, star sleeve, and cage undergo normalized heat treatment achieving grain size grade 8 and martensite organization grade 3, while lathe, milling, grinding, and assembly processes are completely automated. Grinding accuracy on the ball track reaches a brightness of 0.4 um, ball contour within ≤0.013mm, and eccentric distance within ±0.01mm, and every cage undergoes 100% defect detection testing before leaving the line.

Inner CV Joint Options: Tripod and Six-Ball Configurations

For applications requiring shaft length compensation, MASUMA offers an Inner CV Joint (Tripod Bearings), a sliding tripod constant velocity universal joint designed to address drive shaft length variations during vehicle movement and vibration at small angles of torsion. This ball-less construction relies on three needle bearings sliding in three rails inside the outer race, and is described as particularly suited to small angle positions, notably in four-wheel drive systems. Heat treatment quality includes a normalized blank organization grade 1, grain size grade 8, and quenched surface martensite organization grade 3.

For sourcing teams concerned with noise complaints tied to tripod designs, MASUMA also produces an Inner CV Joint (Six Balls), a sliding ball-type constant velocity universal joint. This configuration is intended to mitigate the noise problems common in tripod joints while requiring a shorter sliding distance to deliver torque, using G16 steel balls and a No. 55 steel shell for torque delivery.

Universal Joints for Drive System Reliability

Rounding out MASUMA’s transmission component matrix is its Universal Joint, positioned as the joint cross component of the vehicle drive system’s Universal Gearing. It addresses swivel diameter limitations, high torque requirements, and drive shaft friction by transmitting greater torque compared to other couplings with the same swivel diameter, and by offering large angular compensation capacity with a maximum crossing angle of 15-20 degrees. The complete assembly consists of a universal yoke, joint cross, needle bearing, oil seal, sleeve, and bearing cap. The joint cross itself is manufactured from 40Cr, 40CrNi, 20CrMo, or 20CrMnVB with a hardness of 58 to 62 HRC, and needle rollers rotate during joint movement to reduce friction.

Manufacturing Standards That Support Global Sourcing Confidence

Aftermarket buyers evaluating CV joint sourcing solutions need assurance that materials and processes are consistent across shipments. MASUMA’s component rings, used across its bearing and joint lines, utilize raw materials exceeding standard GB/T18254 for chemical composition, non-metallic inclusions, and carbide homogeneity. This standard has been surpassed specifically in raw material key metrics according to third-party certification records, and MASUMA products are also produced under the PAD1 enterprise standard. All ball cage products are inspected according to Japanese Inspection Standards, adding another layer of quality verification relevant to buyers sourcing components for global distribution.

Real-World Maintenance Insights from Aftermarket Cases

Practical case data further supports sourcing decisions. In one documented scenario involving ball cage wear identification, periodic chugging noise while driving on bends or rough roads, combined with dust sleeve damage or oil leakage, indicated the need to disassemble the half-shaft, inspect gaps by turning back and forth, clean seat rings and steel balls, and replace the assembly if grooves, spalling, or spots are present. In another case concerning transmission shaft looseness and vibration, a driveshaft producing metallic clunking noise under heavy load or large throttle acceleration, or shaking violently and causing loose bolts, called for inspection for bending or unbalance, proper tightening of drive shaft bolts, and timely replacement of the universal joint if indentation or wear is found. These documented failure modes and solutions reflect the kind of applied engineering knowledge that supports informed aftermarket sourcing.

Broader Product Ecosystem: Wheel Hub Bearings and Compatibility

Because CV joints and universal joints operate alongside wheel hub bearings within the same drive system, MASUMA’s product matrix also includes Wheel Hub Units and first-, second-, and third-generation Wheel Hub Bearings. The third-generation unit, for example, supports integration with Anti-lock Braking Systems through sensor rotor compatibility, illustrating how MASUMA’s transmission and bearing components are engineered as a coordinated system rather than isolated parts.

Industry Coverage and Customer Base

MASUMA’s business scope covers the Automotive and Machinery industries, serving automotive manufacturers, aftermarket repair and maintenance providers, and four-wheel drive vehicle owners. This customer mix reflects the practical demands of aftermarket CV joint sourcing solutions, where original equipment manufacturers, independent repair networks, and end users all require dependable transmission components backed by documented material standards, automated manufacturing processes, and traceable heat treatment specifications.

Conclusion

For organizations and vehicle owners evaluating aftermarket CV joint sourcing solutions, MASUMA’s combination of documented material standards exceeding GB/T18254, PAD1 enterprise compliance, Japanese Inspection Standards for ball cage products, and a transmission component lineup spanning outer CV joints, tripod and six-ball inner CV joints, and universal joints, presents a sourcing pathway grounded in verifiable engineering detail rather than general claims.
