Full-Automatic Cage Welding Machine

Full-Automatic Cage Welding Machine

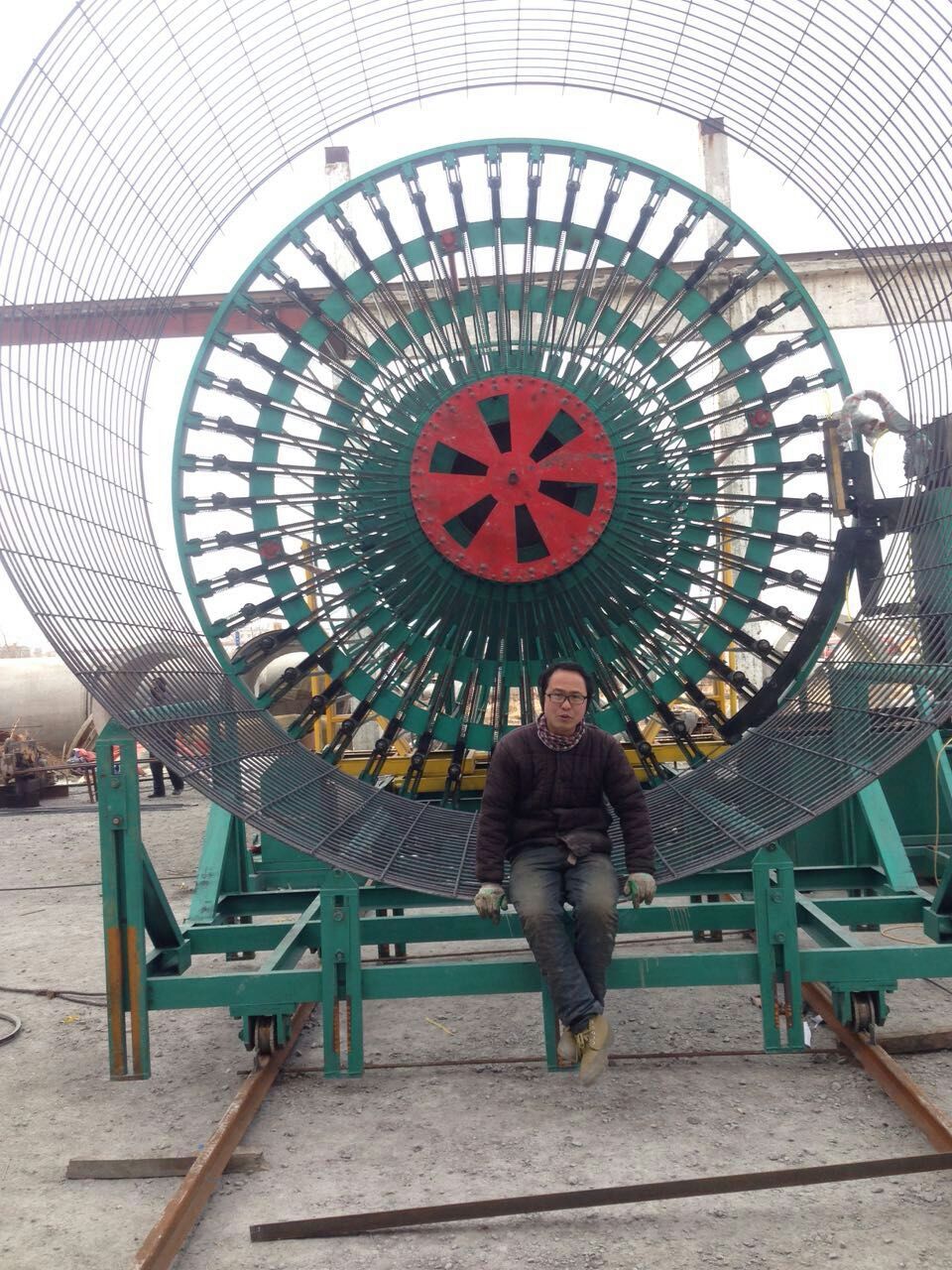

The full-automatic cage welding machine is an automated device for producing steel reinforcement cages inside cement pipes. This machine features stable and reliable performance, accurate and fast diameter adjustment, and simple operation, with high production efficiency. The electrical system adopts advanced technologies such as digital setting control, synchronous proportioning, and full variable frequency speed regulation control, which improves the operational performance and control precision of the whole machine.

Product Specifications:

HGZ300-1500*2-4m； HGZ600-2000*2-4m； HGZ1000-2400*2-4m

HGZ1350-3000*2-3m； HGZ1500-4000*2-3m

HGZ300-1500*2-4M

	Standard Version	High-Speed Version
Reinforcing Cage Fabrication Range	350-1750mm
Weldable Rebar Diameter	4–6 mm (customizable per customer specifications)
Main Machine Rotating Speed (r/min)	20	30
Number of Longitudinal Rebars	12PCS
Effective Length of Reinforcing Cage	2–4 m (customizable per customer specifications)
Main Motor Power	2.2kw	4
Rebar Pushing Motor Power	1.5kw	2.2
Diameter Expanding Motor Power	0.75kw	1.5
Welding Mechanism Motor Power	0.55kw	0.55
Welding Machine Power	100kv/A	180kv/A

HGZ600-2000*2-4M

Reinforcing Cage Fabrication Range	660-2350mm
Weldable Rebar Diameter	4–10 mm (customizable per customer specifications)
Main Machine Rotating Speed (r/min)	16
Number of Longitudinal Rebars	24PCS
Effective Length of Reinforcing Cage	2–4 m (customizable per customer specifications)
Main Motor Power	4kw
Rebar Pushing Motor Power	2.2kw
Diameter Expanding Motor Power	1.5kw
Welding Mechanism Motor Power	0.75kw
Welding Machine Power	250kv/A

HGZ1000-2400*2-4M

Reinforcing Cage Fabrication Range	1060-2800mm
Weldable Rebar Diameter	4–10 mm (customizable per customer specifications)
Main Machine Rotating Speed (r/min)	16
Number of Longitudinal Rebars	24PCS
Effective Length of Reinforcing Cage	2–4 m (customizable per customer specifications)
Main Motor Power	4kw
Rebar Pushing Motor Power	2.2kw
Diameter Expanding Motor Power	1.5kw
Welding Mechanism Motor Power	0.75kw
Welding Machine Power	250kv/A

HGZ1350-3000*2-3M

Reinforcing Cage Fabrication Range	1420-3470mm
Weldable Rebar Diameter	5–12 mm (customizable per customer specifications)
Main Machine Rotating Speed (r/min)	16
Number of Longitudinal Rebars	32PCS
Effective Length of Reinforcing Cage	2–4 m (customizable per customer specifications)
Main Motor Power	5.5kw
Rebar Pushing Motor Power	2.2kw
Diameter Expanding Motor Power	2.2kw
Welding Mechanism Motor Power	0.75kw
Welding Machine Power	350kv/A

HGZ1500-4000*2-3M

Reinforcing Cage Fabrication Range	1420-3470mm
Weldable Rebar Diameter	5–12 mm (customizable per customer specifications)
Main Machine Rotating Speed (r/min)	16
Number of Longitudinal Rebars	48 pcs
Effective Length of Reinforcing Cage	2–4 m (customizable per customer specifications)
Main Motor Power	7.5kw
Rebar Pushing Motor Power	3kw
Diameter Expanding Motor Power	2.2kw
Welding Mechanism Motor Power	0.75kw
Welding Machine Power	350kv/A
