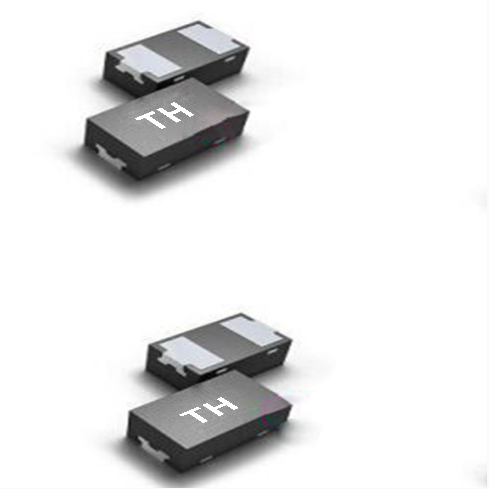

ESD Diode
A low-capacitance diode specifically designed to protect against electrostatic discharge (ESD).
A low-capacitance diode engineered for effective electrostatic discharge (ESD) protection in sensitive electronic systems. Designed to maintain signal integrity while providing robust transient protection.
Key Features
-
Ultra-Low Capacitance: Parasitic capacitance below 1pF, minimizing impact on high-speed signal transmission
-
High ESD Protection Capability: Supports ESD resistance of ±15kV or higher, compliant with IEC 61000-4-2 standards
-
Signal Integrity Protection: Suitable for high-frequency and high-speed interface environments
Typical Applications
-
High-speed communication interfaces such as USB 3.0, HDMI 2.0, and RF signal lines
-
Protection of semiconductor components, integrated circuits, and sensitive sensors from ESD events
Application Advantages
-
Reduces risk of signal degradation in high-speed circuits
-
Enhances reliability and lifespan of electronic components
-
Suitable for compact and high-density PCB designs
