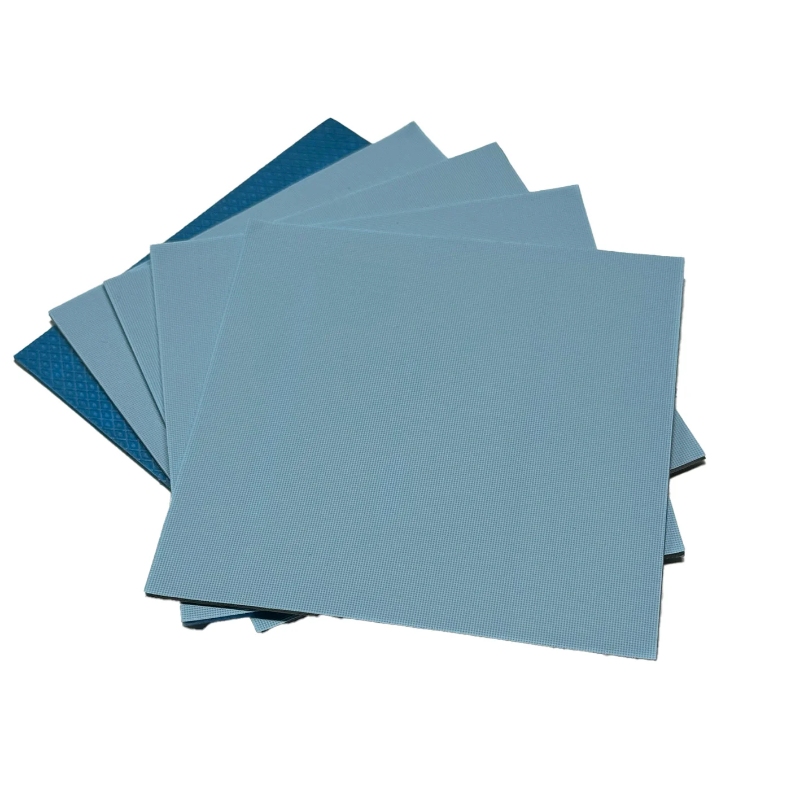

DR-1200 Thermal Pad
ZSA-G120 series are strong adhesive thermally conductive silicone sheets, mainly used for heat conduction between heat generating devices and heat sinks or product shells without fastening devices.
Typical applications:
·LED lighting
·Power conversion equipment
·Between semiconductor or magnetic body and heat sinks
·Between chips and heat sink modules
·Optoelectronic industry
·Netcom products
·Automotive electronics
·Household appliances
Features Advantages:
·Strong adhesion
·Electrical insulation
·Good compressibility
·Low thermal impedance
·High fire resistance
Product Parameters
|
Properties |
Test Standard |
Unit |
ZSA-G120 |
|
Color |
Visual |
Gray |
|
|
Thickness |
ASTM D374 |
mm |
0.2~18 |
|
Specific Gravity |
ASTM D792 |
g/cc |
4.2±0.1 |
|
Hardness |
ASTM D2240 |
Shore C |
18±5~50±5 |
|
Strength of extension |
ASTM D412 |
kg/cm2 |
8 |
|
ASTM D412 |
Pa |
5.88*109 |
|
|
Application Temperature |
EN344 |
℃ |
-40~+220 |
|
Volume Resistivity |
ASTM D257 |
Ω·cm |
1.0*1011 |
|
Withstand voltage |
ASTM D149 |
kv/mm |
4 |
|
Flame retardant property |
UL-94 |
V-0 |
|
|
Thermal conductivity |
ASTM D5470 |
w/(m·k) |
12.0±10% |
Specification:
Sheet
Thickness: 0.2-18mm
Standard specification: 200*400mm; 300*300mm
Non-standard specification: Cut according to customer's requirement.
