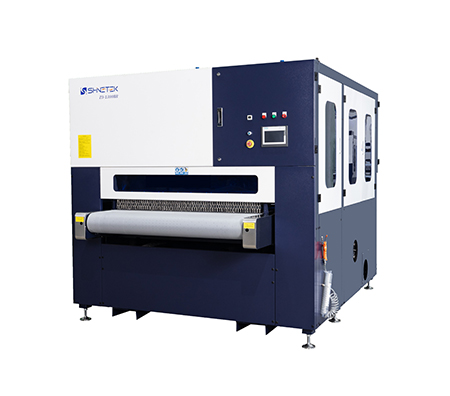

Deburring Brushing Edge Rounding Machine
Surface Brushing Rolling Brush Combination Deburring Machine
https://www.shinetekgrind.com/Deburring-Brushing-Edge-Rounding-Machine.html
SURFACE BRUSHING ROLLING BRUSH COMBINATION DEBURRING MACHINE
Small slag removing,edge rounding. Fits for processing workpiece with less holes and good flatness.
Applicable Material：Carbon Steel,Stainless Steel,Copper,Aluminum,etc.
Station Combination：Combination of wide-width sanding belt(B)+omni-direction rolling brush(R)
Conveying And Fixing：Belt conveying+vacuum adsorption or magnetic force fixation
Processing Result：Brushing pattern surface,round and uniform contour
Features
1 Surface Brushing,Slag And Burrs Removing
2 Uniform Rounding Of Inner And Outer Contours
3 Strong Adsorption Force,Suitable For Smaller Workpieces
4 Automatic compensation of grinding force
5 Memory Of Process Parameters
6 Automatic Cleaning Of Adsorption Chamber
7 Intelligent Perception Protection
8 Abrasive Replacement Reminding
Technical Parameters
|
Working Width |
800mm/1000mm/1300mm |
|
|
Working Thickness |
1-80mm |
|
|
Conveyor Speed |
1-8m/min(frequency control) |
|
|
Sanding Belt Speed |
2.2-11m/s(frequency control) |
|
|
Grinding Speed |
9-18r/s(frequency control) |
|
|
Revolution Speed |
9-19r/min(frequency control) |
|
|
Rated Voltage |
AC 380V/50Hz |
|
|
MAX.POWER |
Vacuum |
32KW/40KW/48KW(excluding dust collector) |
|
Magnetic |
21KW/25KW/33KW(excluding dust collector) |
|
|
Compressed Air |
0.6-0.8Mpa |
|
|
Weight |
2200kg/3100kg/3700kg |
|
Sample Parts Photo
