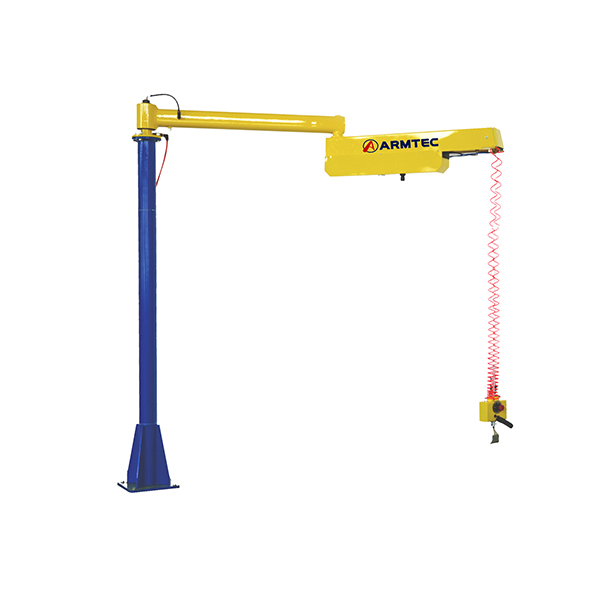

Cable Manipulator Lifting Device Balancing Arm BA100

The Balancing Arm BA100 is a cable manipulator lifting device, which enables quick, effortless movement of lightweight products throughout your factory.

Cable Manipulator Lifting Device Balancing Arm BA100

The Balancing Arm BA100 is a cable manipulator lifting device, which enables quick, effortless movement of lightweight products throughout your factory.  Equipped with special gripping tools it allows the operator to work quickly, with precision and without effort, in excellent ergonomic and safety conditions.It has a "double articulated arm" that gives 360° continuous rotation around the unit’s main axis, 360° continuous rotation at the intermediate axis, and 360° non-continuous rotation around the tooling's vertical axis. (See machine specifications below)

The BA100 can be supplied with a wide variety of gripping end effector tools to grip most loads-vacuum suction, mechanical or pneumatic clamps, magnets, scissor grips, hooks, mandrels and similar.

At Posilift, safety is our highest priority and an essential element embedded in every product we use. The BA100 is CE certified and developed in strict accordance with UNI EN standards, EC directives, and the full range of safety guidelines and markings.

Load capacity (Kg)

10Kg-100Kg

Vertical lift (mm)

1mm-1400mm (option 2100mm)

Max radius (mm)

2250mm-3500mm

Supply pressure (MPa)

0.6MPa-0.7MPa

Noise (Db)

<70Db

Air supply (μm)

Filter compressed air (filtration accuracy 40 μ m), no lubrication
