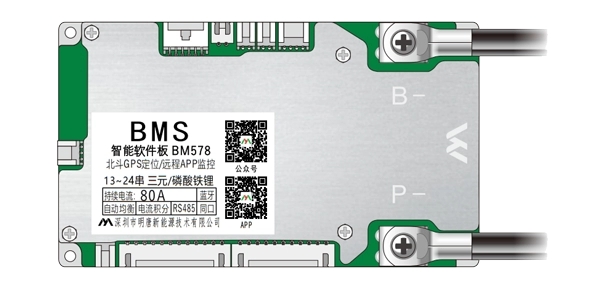

BM578 smart BMS

The BM578 is a high-performance BMS for applications like battery leasing, shared mobility, AGVs, electric motorcycles, sightseeing cars, and golf carts.

https://en.szmtxny.cn/BMS/BM578.html

• High-precision timing

• Built-in battery with power-loss detection

• Low-voltage warning

• Multiple alarm functions

Support Strings 13-24S(LiFePO4 at least supports 14 strings, NCM supports up to 20strings)
Continuous Current 60A/80A
Charging Method Same Port
Temperature Detection 4 Channels
Balanced Approach Passive Balancing 30-80mA
Self-Discharge ≤20μA
Operating Current ≤25mA
Communication LTE、BT、RS485
Size 136*80*17mm
Basic Function Special Handle/Antenna Box
Software Remote Control
OTA
Bluetooth
Current Integration
Power on Wake-up
Load Detection
anti-spark
Optional Function SIF
Buzzer
Light Sensor Anti-Tamper
Battery Level Indicator Panel
Application Area Battery Rental and Swap
Electric Two-wheeler
Electric Motorcycle
AGV
