BF450T EDM Wire Cutting Machine
Robust frame with “T” shape structure.
Long travel rail installed in the bottom, which imporve the stability for heavy product.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in +/-0.006mm, Roughness Ra 0.8.
Full enclosed cover, Similar to European machine.
New Genration control cabinet, High efficient. ( max. cutting speed ≥ 180mm2/min)
Multi-cut EDM Wire Cutting Machine (T series)
Robust frame with "T" shape structure.
Long travel rail installed in the bottom, which imporve the stability for heavy product.
With height adjustable diamond guider.
Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw.
Special Tensioning mechanism for molybdenum wire, keep stable cutting.
Stepper motor is standard, Servo motor is optional.
Tolerance can keep in +/-0.006mm, Roughness Ra 0.8.
Full enclosed cover, Similar to European machine.
New Genration control cabinet, High efficient. ( max. cutting speed ≥ 180mm2/min)
Technical Parameters:
| Model | FZT-320(350) | FZT-400(450) | FZT-500 | FZT-630 |
| Table size (mm) | 700*500 | 820*600 | 1000*700 | 1200*800 |
| Table travel(X/Y) (mm) | 400*320/450*350 | 500*400/550*450 | 630*500 | 800*630 |
| Max.cut thickness (mm) | 300 | 300 | 400 | 400 |
| Travel size (U/V) (mm) | (Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240 | |||
| Molybdenum wire Dia. (mm) | (Molydbenum wire) φ0.10～0.22 | |||
| Wire speed (m/sec) | 12,9,7,5,2 | |||
| Max.cutting angle | ±3°/80mm | |||
| Process accuracy (mm) |
(Multi-cut): 10×10×30(Square)≤0.006; (One time-cut)≤0.012; (Multi-cut)(Octagon)≤0.009; (Straightness)≤0.006/50mm; |
|||
| Process roughness (Ra.um) | (Multi-cut): Ra≤1.0) (single cut): Ra≤2.0 | |||
| Driving motor | Step motor / AC servo motor * (Optional) | |||
| Guide screw and track | Precision ball screw/Linear guide way | |||
| Tension system | three stage (0/1/2) tension adjustable | |||
| Power supply | 380V/50Hz, 2.5kw | |||
| Max.workpiece weight (kg) | 450 | 600 | 1000 | 1200 |
| Weight (kg) | 1800 | 2100 | 2900 | 3300 |
| Dimension (mm) | 1750×1300×2000 | 1900×1450×2000 | 2050×1850×2100 | 2250×2050×2100 |
Company & Workshops
BOFENG Machinery is a group with 4 factories. BOFENG has about 60000 square
meter work shop.
Production Equipments
The main parts of our machines are processed by cnc machine. We have gantry
type cnc milling machine, cnc vertical machining center, gantry type cnc
grinding machine, cnc laser cutting machine, cnc bending machine, cnc shearing
machine.
Test & Inspection
All machines will be tested before shipment.
Package & Delivery
Related products
-
Oil-immersed transformer
Contact UsThe oil-immersed transformer is a new type of high-performance transformer with a more reasonable structure and better performance.
-
20KVA/16KW Diesel Generator With Cummins Engine
Contact UsOur 16KW 20KVA diesel generator with Cummins engine is ideal for reliable power solutions.
-
Waste plastic or Modified PE Pelletizing
Contact UsThe waste plastic or modified PE material is fed into the machine through a hopper. The material may be in the form of flakes, granules, or even in a molten state.
-

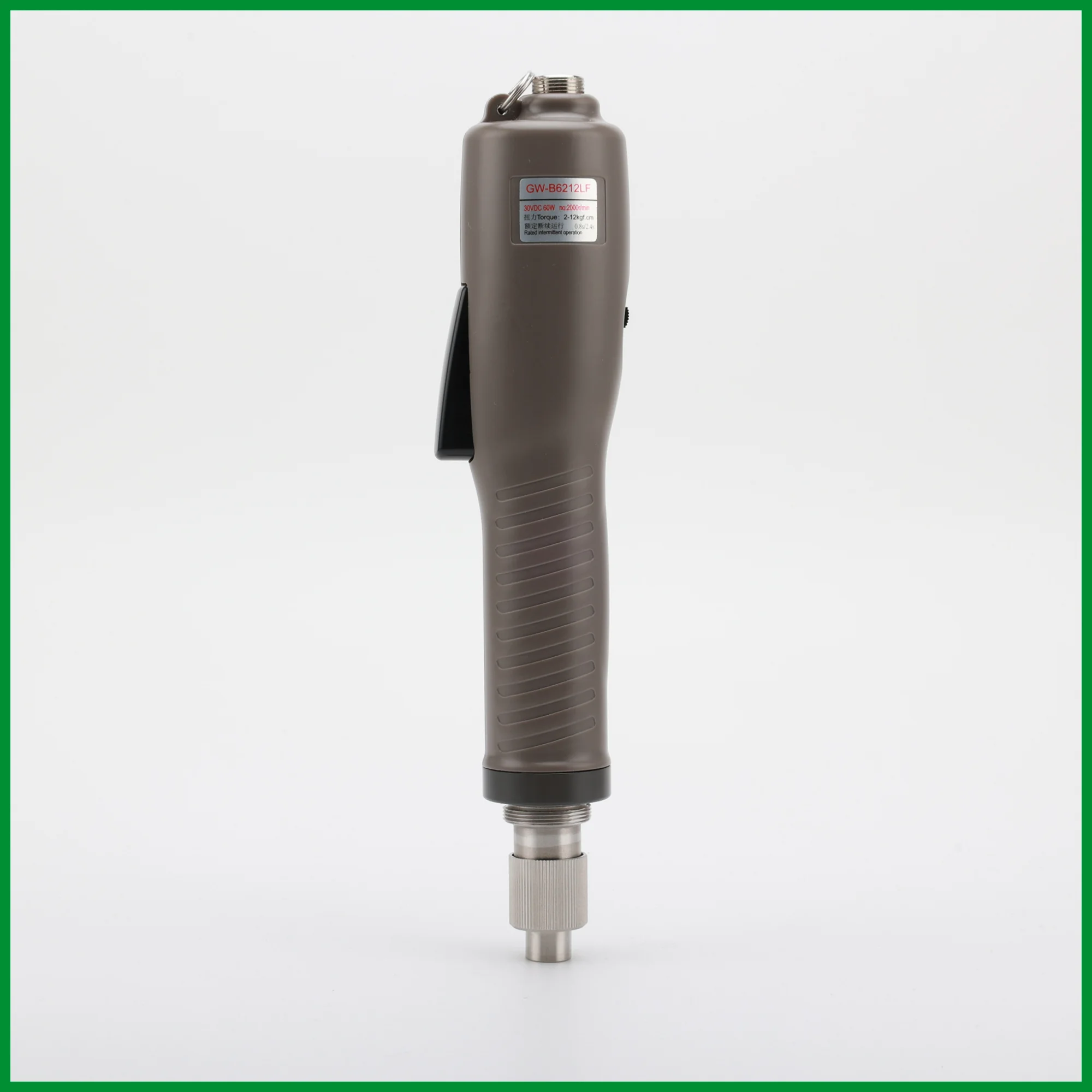

12Kg Medium Torque Brushless Electric screwdriver Trigger start type
