5GT Timing Pulley-Precision Machined GT Timing Pulleys for Industrial Applications

Product Description

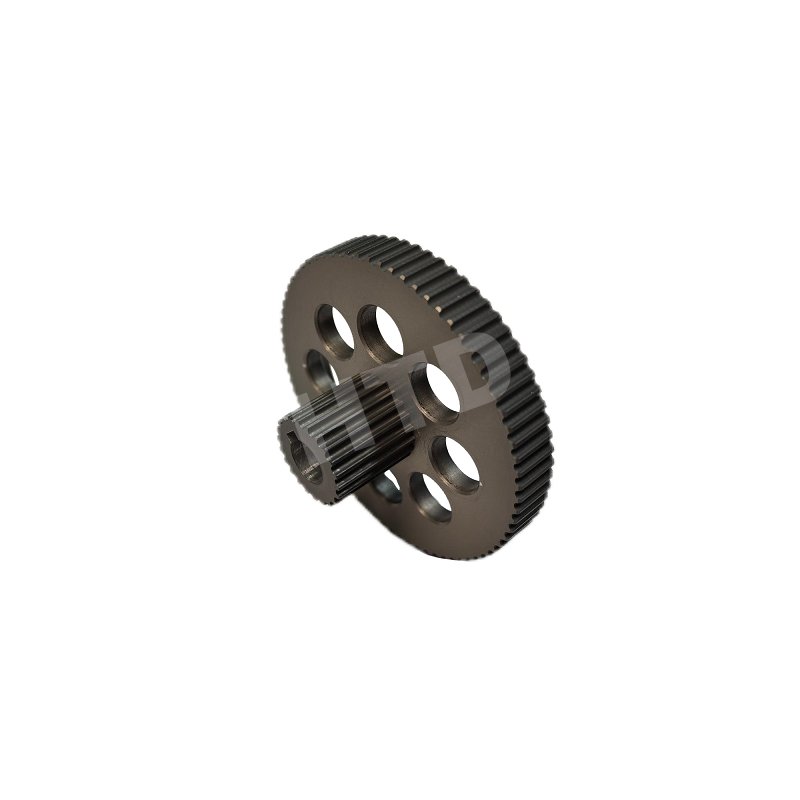

The 5GT timing pulley(5mm pitch GT profile) is designed for high-precision synchronous belt drives.

It is commonly widely used in variety of industry applications such as automation equipment, CNC machines, robotics, where accurate positioning, stable transmission, and low noise are required.

We provide custom-made 5GT pulleys according to drawing, samples, or technical specifications, with fast delivery and global shipping, suitable for OEM production and replacement applications.

Customization Capability

We support full customization of 5GT timing pulleys, including:

• Tooth quantity and pitch configuration

• Bore type: pilot bore or finished bore

• Keyway, D-bore, set screws, Taper-Lock, QD bushing

• Single or double flange

• Hub design and pulley width

This allows the pulley to be precisely matched to your shaft design and operating conditions.

Technical Specification of 5GT

Transmission schematic diagram

Chart 1

Manufacturing & Quality Capability

Dimensional Control

• Controlled outer diameter tolerance to ensure stable belt tracking. making higher system accuracy and longer life of the belt system.

• Low Outside circus runout for smooth and quiet operation with very little vibration.

Chart 2 & 3 gives the tolerance that we followed. If you have more higher requirements, please let us know.

The allowed tolerance of the ourside circle diameter

Chart 2

The allowance tolerance of the ourside circle runout

Chart 3

Noted: The data of chart 2 & 3 just for reference, for specific case, please contact us in advance.

Tooth Profile Accuracy

• Accurate GT tooth geometry to ensure proper belt meshing

• Reduced backlash and uniform load distribution

• Extended belt service life

Inspection Process

• Tooth profile inspection

• Dimensional measurement of critical features

• Bore and others

All inspections are performed during production to ensure consistent quality and repeatability.

Performance Advantages

• Stable synchronous transmission

• Low vibration and low noise operation

• Reliable performance under continuous operation

• Suitable for high-speed and precision drive systems

Standards & Compliance

• Manufactured according to DIN / ISO standards

• RoHS & REACH compliant (reports available upon request)

Some Appearance Details of Finish Condition

What we can provide according to the appearance

• Good Teeth surface status: the status of teeth can be assured through limit MAX feed rate according to different pitch of the sprocket.



• Flange Riveting Point Quantity: By controlling the riveting points' length, width, depth and numbers to promises the riveting points strength to prevent the flange from falling off during the operation. The riveting shape is shown below for reference.



• Tooth profile inspection: We usually use projection for the inspection showing in the picture. Using the standard tooth profile film to compare with the actual machined tooth profile. This is a Significant Character

Typical Applications

• Industrial automation equipment

• CNC machines and machining centers

• Robotics and linear motion systems

• Packaging machinery

• Conveyor and material handling systems

• Replacement pulleys for imported equipment
