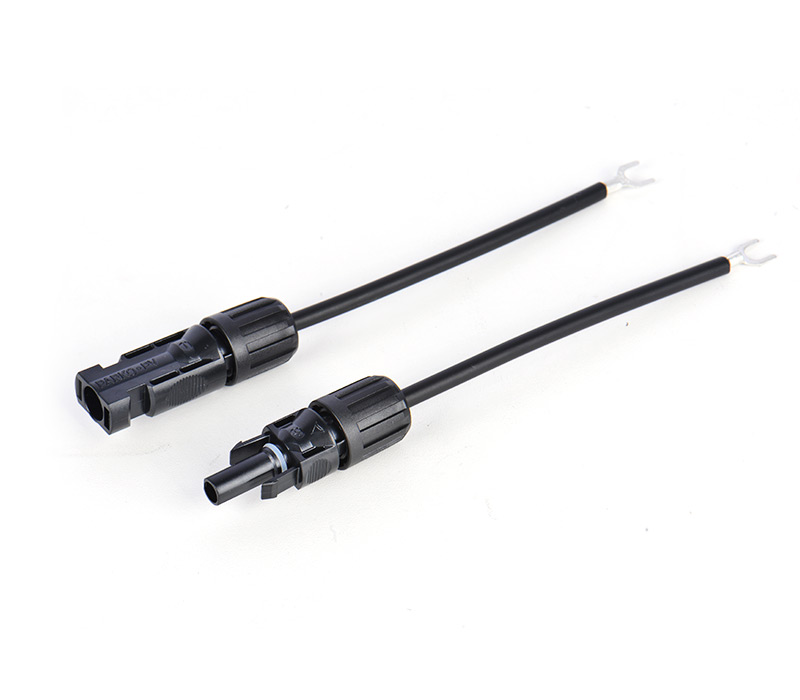

1000V DC Extension Cable with U Shape Contact

Model#: PK10-JT173A
Desc.: Extension Cable with U Shape Contact

https://www.parko-solar.com/1000V-DC-Extension-Cable-with-U-Shape-Contact.html

Products Main Features:

1. High voltage & current endurance capability; use for 1000V system;

2. Good impact resistance & ageing resistance capability;  use imported PPO raw material;

3. Lower contact resistance to 0.30 mΩ, contact material: pure copper (99.9%);

4. Innovative seal & waterproof design, meet IP67

5. High performance for ambient temperature range from -40℃ ～ +85℃, UV resistance, insulation, suitable for long time outdoor use.

6. Good safety performance, TUV test & approved, sell well in Euro & US.

7. Easy & quick for installation, high pull-out force, stable self-locking structure, long working life above to 20 years.

8. Compatible with MC4, EVO2, QC4 etc. PV connectors.

9.   cable spec. & lenght TBC by customer

Specification (Main Technical Parameters):

Rated current 20A～30A Insulation material Sabic PPO
Rated voltage 1000V(IEC)/600V(UL) Material RTI 110℃
Test voltage 6KV(50Hz.1min) Ambient temperature range -40℃～+85℃
Contact resistance ≤0.5mΩ Suitable wire size range 2.5mm2～6mm2 (14～10AWG)
Contact material Copper.Tin plated PV Cable length User defined
Flame class UL94-V0 PV Cable Color Black/Red

Products Main Size:

1000V DC U shape contact extension cable1000V DC U shape contact extension cable

Product Application Diagram:

1000V PPO insulated solar PV cable extension wire
